開閉器半圓形/開閉器SL型

SLIDE LOCK

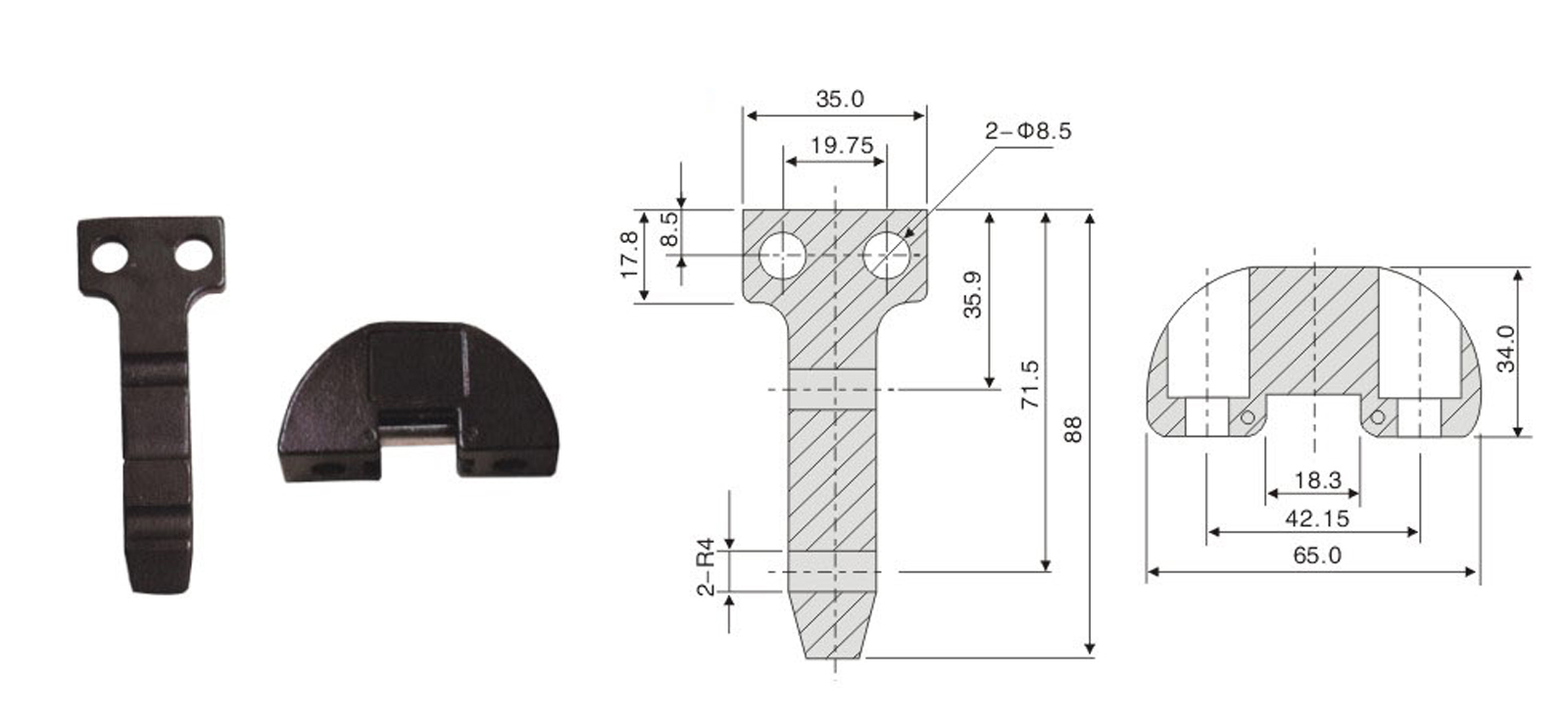

JH061半圓型 Half—rotundity type

訂購方法：代號
Order:Type

Material	Hardness
材質	硬度
白鐵SUS404	HRC50°~52°

SL型

Material	Hardness
M材質	硬度
SCM21	HRC55°~60°

裝置之功能及優點：

1.利用簡單之構造，可使模具完全打開與密合，且裝置簡單互換性高：
2.本裝置最適合三模板之針點射出，有拉斷料頭與脫模一次完全之功能。
3.本裝置有四種型：GSL-2型適合5盎司以下之模具，GSL-3型適合中型模具，GSL-4型適合大型模具.
4.本裝置采用高級合金鋼熱處理后研磨而成，采用進口彈簧，品質可靠。

Function & Instructions:

1 .Using simple construction,can open and close the mold completely and inter change easily
2.Excellent for 3-pcs mold plates for its precision injection.lt will cut off the excessive materials and leave the mold at the time of finishing .
3.4different clamping force ：GLS-2 suit for mold below 5ounce ,GLS-3 suit for medium model .GLS-4suit for big model
4.This equipment was made by advanced alloy steel and heat treatment &milling it adopt imported spring , with reliable quality.

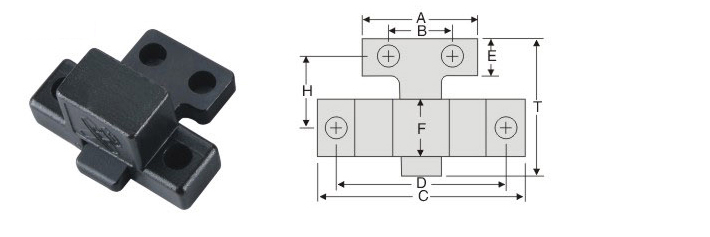

Type	A	B	C	D	E	F	H	T	Hole 孔	Force 拉模力kg
JH062-2S	40	26	72	60	20	20	23	49	M8	60
JH062-2L	36	22					66	96
JH062-3S	50	30	113	90	22	30	38	73	M10	80
JH062-3L							79	118
JH062-4S	50	30	113	90	22	30	38	73	M12	100
JH062-4L					25		103	135
