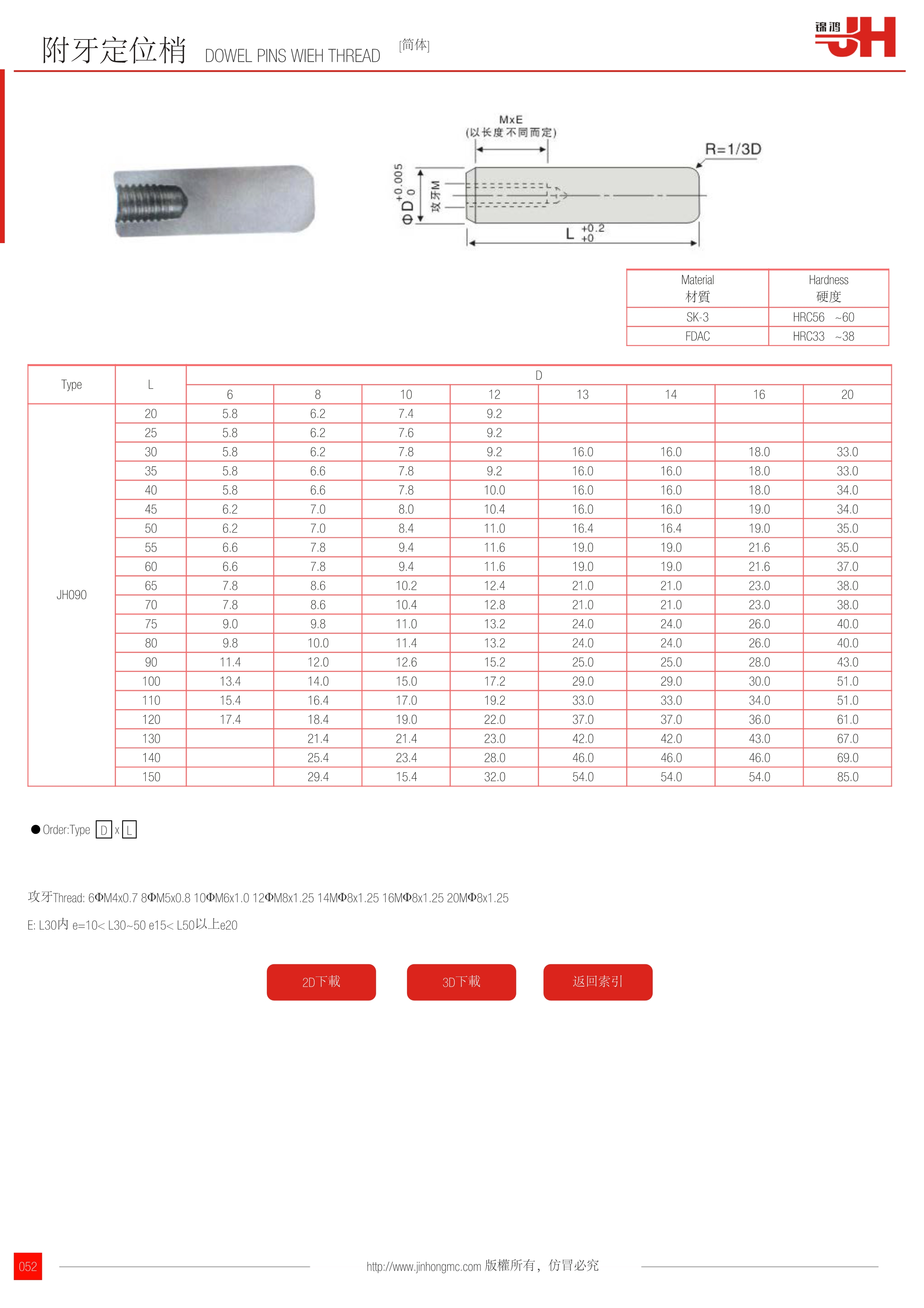

| Material 材質 | Hardness 硬度 |
| SK-3 | HRC56?~60? |
| FDAC | HRC33?~38? |
| Type | L | D | |||||||
| 6 | 8 | 10 | 12 | 13 | 14 | 16 | 20 | ||
| JH090 | 20 | 5.8 | 6.2 | 7.4 | 9.2 | ||||
| 25 | 5.8 | 6.2 | 7.6 | 9.2 | |||||
| 30 | 5.8 | 6.2 | 7.8 | 9.2 | 16.0 | 16.0 | 18.0 | 33.0 | |
| 35 | 5.8 | 6.6 | 7.8 | 9.2 | 16.0 | 16.0 | 18.0 | 33.0 | |
| 40 | 5.8 | 6.6 | 7.8 | 10.0 | 16.0 | 16.0 | 18.0 | 34.0 | |
| 45 | 6.2 | 7.0 | 8.0 | 10.4 | 16.0 | 16.0 | 19.0 | 34.0 | |
| 50 | 6.2 | 7.0 | 8.4 | 11.0 | 16.4 | 16.4 | 19.0 | 35.0 | |
| 55 | 6.6 | 7.8 | 9.4 | 11.6 | 19.0 | 19.0 | 21.6 | 35.0 | |
| 60 | 6.6 | 7.8 | 9.4 | 11.6 | 19.0 | 19.0 | 21.6 | 37.0 | |
| 65 | 7.8 | 8.6 | 10.2 | 12.4 | 21.0 | 21.0 | 23.0 | 38.0 | |
| 70 | 7.8 | 8.6 | 10.4 | 12.8 | 21.0 | 21.0 | 23.0 | 38.0 | |
| 75 | 9.0 | 9.8 | 11.0 | 13.2 | 24.0 | 24.0 | 26.0 | 40.0 | |
| 80 | 9.8 | 10.0 | 11.4 | 13.2 | 24.0 | 24.0 | 26.0 | 40.0 | |
| 90 | 11.4 | 12.0 | 12.6 | 15.2 | 25.0 | 25.0 | 28.0 | 43.0 | |
| 100 | 13.4 | 14.0 | 15.0 | 17.2 | 29.0 | 29.0 | 30.0 | 51.0 | |
| 110 | 15.4 | 16.4 | 17.0 | 19.2 | 33.0 | 33.0 | 34.0 | 51.0 | |
| 120 | 17.4 | 18.4 | 19.0 | 22.0 | 37.0 | 37.0 | 36.0 | 61.0 | |
| 130 | 21.4 | 21.4 | 23.0 | 42.0 | 42.0 | 43.0 | 67.0 | ||
| 140 | 25.4 | 23.4 | 28.0 | 46.0 | 46.0 | 46.0 | 69.0 | ||
| 150 | 29.4 | 15.4 | 32.0 | 54.0 | 54.0 | 54.0 | 85.0 | ||

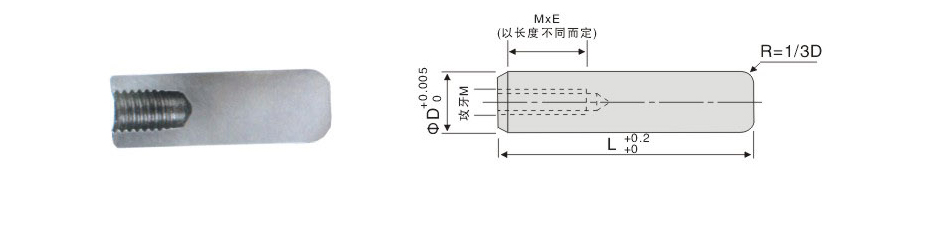

訂購：245-附牙定位梢 JH090
