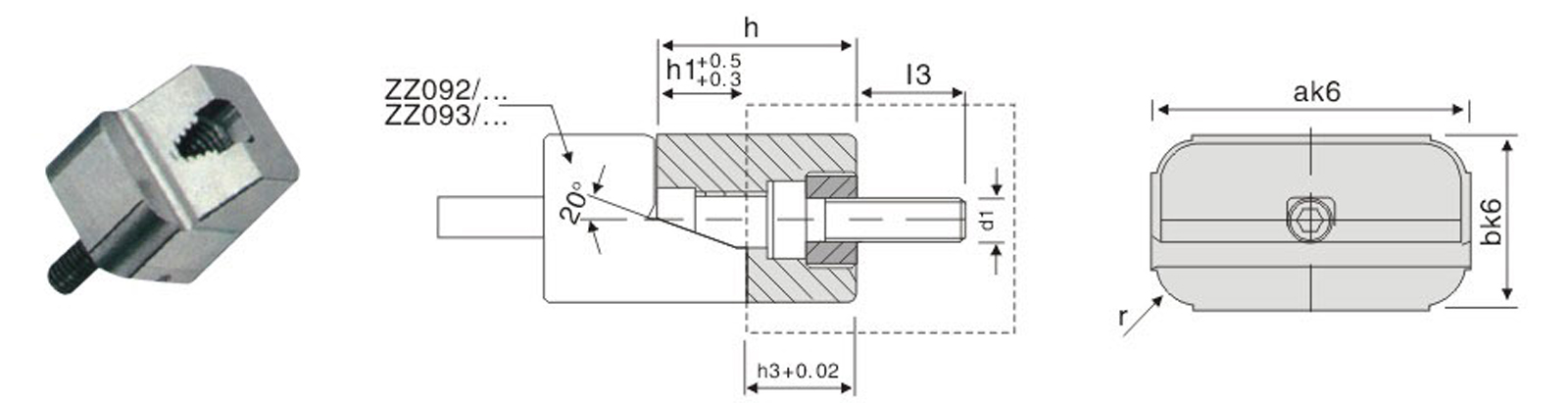

| M材質 Material | 硬度 Hardness |
|---|---|
| 1.2343 | HRC50°~56° |
| 型號/Type | 尺寸/dimension | |||||||
| h3 | I3 | r3 | d3 | h | b | a | h1 | |
| JHN11/20x20x10 | 12 | 12 | 4 | M5 | 22 | 20 | 20 | 10 |
| 40 | ||||||||
| JHN11/20x40x10 | ||||||||
| JHN11/25x25x12 | 14 | 13 | 5 | M6 | 26 | 25 | 25 | 12 |
| JHN11/25x40x12 | 40 | |||||||
| JHIM11/32x32x16 | 18 | 15 | 6 | M8 | 34 | 32 | 32 | 16 |
| 50 | ||||||||
| JHN11/32x50x16 | ||||||||

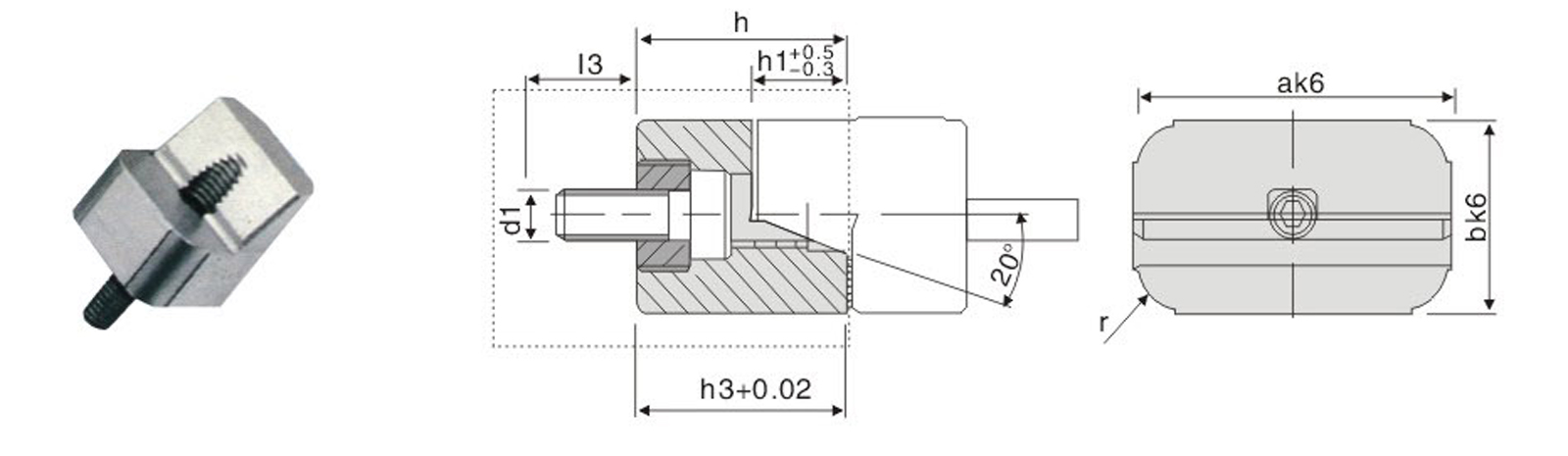

| 材質 Material | 硬度 Hardness |
|---|---|
| 1.2343 | HRC50°~56° |
| 型號/Type | 尺寸/dimension | |||||||
| h3 | I3 | r | d3 | h | b | a | h1 | |
| JHN12/20x20x10 | 22 | 12 | 4 | M5 | 22 | 20 | 20 | 10 |
| JHN12/20x40x10 | 40 | |||||||
| JHN12/25x25x12 | 26 | 13 | 5 | M6 | 26 | 25 | 25 | 12 |
| JHN12/25x40x12 | 40 | |||||||
| JHN12/32x32x16 | 34 | 15 | 6 | M8 | 34 | 32 | 32 | 16 |
| JHN12/32x50x16 | 50 | |||||||
訂購：86-定位塊 JHN11
