| M材質 Material | 硬度 Hardness |
|---|---|
| YK30+石墨/graphite | HRC50°~56° |

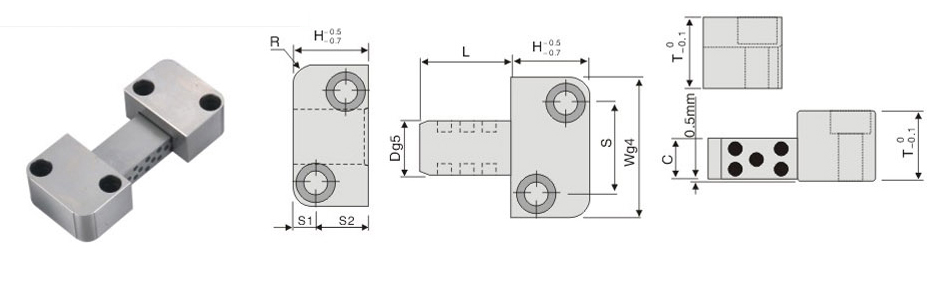

| 型號/Type | 尺寸/dimension | ||||||||||
| L | D | T | W | C | H | S1 | S2 | S | R | 螺絲/screw | |
| JHN15-16x20 | 20 | 16 | 20 | 40 | 11 | 22 | 7 | 15 | 26 | 6 | M6-1.0×25 |
| JHN15-16x40 | 40 | ||||||||||
| JHN15-20x25 | 25 | 20 | 22 | 45 | 13 | 27 | 19 | 31 | |||
| JHN15-20x50 | 50 | ||||||||||
| JHN15-25x32 | 32 | 25 | 25 | 50 | 14 | 36 | 9 | 27 | 35 | 8 | M6-1.0×30 |
| JHN15-25x63 | 63 | ||||||||||
| JHN15-32x40 | 40 | 32 | 32 | 63 | 19 | 46 | 11 | 35 | 45 | M8-1.25×35 | |
| JHN15-32x80 | 80 | ||||||||||
| JHN15-40x50 | 50 | 40 | 36 | 85 | 22 | 56 | 15 | 40 | 60 | 10 | M10-1.5×40 |
| JHN15-40x100 | 100 | ||||||||||
| JHN15-50x56 | 56 | 50 | 40 | 100 | 24 | 66 | 18 | 48 | 74 | M12-1.75×45 | |
| JHN15-50x112 | 112 | ||||||||||
| M材質 Material | 整體硬度 Whole Hardness | 表面硬度 Surface Hardness |
|---|---|---|
| A-2 | HRC50°~56° | |
| H-13 | HRC50°~56° | HRC80° |
| 型號/Type | 尺寸/dimension | |||||||||
| W | L+.000+.010 | C+.0000+.0003 | F+.000+.005 | T+.0000+.0003 | M | H+.00+.01 | S±0.1 | R | 內六角螺線絲 internal hexagon screw S.H.C.S | |
| JHN16-100x150 | 1.500 | 1.000 | .500 | .500 | .500 | . 375 | .85 | .25 | .187 | M:#10-32x1" F" # 10-32x5/8" |
| JHN16-100x250 | 2.500 | 1.500 | .750 | .750 | 1.000 | .625 | 1.35 | .31 | .250 | M: 1/4-20x1-1/2" F: 1/4-20x7/8" |
| JHN16-200x350 | 3.500 | 2.000 | 1.000 | 1.000 | 1.500 | .750 | 1.73 | .44 | .375 | M:3/8-16x2" F:3/8-16x1-1/4" |
| JHN16-250x450 | 4.500 | 2.500 | 1.250 | 1.250 | 2.000 | .875 | 2.1 | .56 | .500 | M: 1/2-13x2-1/4" F: 1/2-13x2-1/4" |
訂購：88-定位滑塊2 JHN16
