| Material M材質 | Hardness 硬度 |
|---|---|
| 1.7131 | HRC55°~60° |
| 型號/Type | 尺寸/dimension | |||||||||||||||||
| A | X | B | C1 | D | d | E | F | G | h | H | J | K | L | L1 | T | M | N | |
| JHN17-5026 | 50 | 26 | 17 | 43 | 10.5 | 6.5 | 11 | 13 | 17 | 8.5 | 9.5 | 1.5 | 8 | 21.5 | 26 | 16 | M6 | 15 |
| JHN17-5036 | 36 | 53 | 18 | 36 | ||||||||||||||
| JHN17-7526 | 75 | 26 | 25 | 51 | 16.5 | 10.5 | 18 | 13 | 25 | 14 | 15 | 12 | 36 | 26 | 19 | M10 | 20 | |
| JHN17-7536 | 36 | 61 | 18 | 36 | ||||||||||||||
| JHN17-10036 | 100 | 35 | 71 | 22 | 35 | 20 | 21 | 45 | ||||||||||
| JHN17-10046 | 46 | 81 | 23 | 46 | ||||||||||||||
| JHN17-12536 | 125 | 36 | 45 | 71 | 13 | 42 | 36 | 25 | ||||||||||
| JHN17-12546 | 46 | 81 | 18 | 46 | ||||||||||||||
| Material 材質 | Whole Hardness 整體硬度 | Surface Hardness 表面硬度 |
|---|---|---|
| A-2 | HRC50°~56° | |
| H-13 | HRC50°~56° | HRC80° |

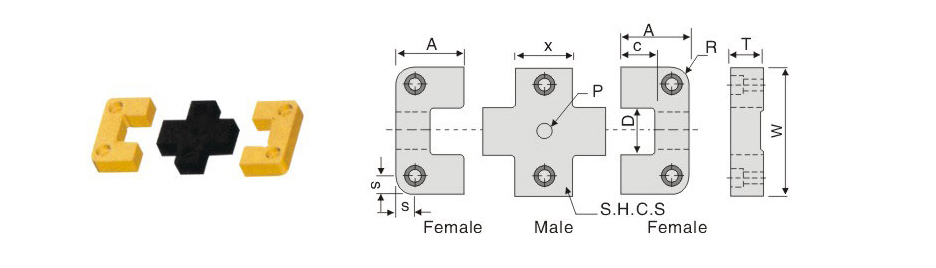

| 型號/Type | 尺寸/dimension | |||||||||
| W +.0000 -.0004 | T +.000 -.002 | X +.000 -.005 | A +.000 -.002 | C ±0.1 | D .0001/.0002 | R | S ±0.1 | P +.001 -.000 | 內六角螺場絲 internal hexagon screw S.H.C.S | |
| JHN18-50x87 | 2.000 | .500 | .875 | 1.375 | .65 | .750 | .187 | .312 | .250 | #10-32x5/8" |
| JHN18-75x137 | 1.375 | 1.12 | 1.250 | .250 | .375 | .313 | 1/4-20x3/4" | |||
| JHN18-75x187 | 1.875 | |||||||||
| JHN18-100x137 | 1.375 | 1.500 | .500 | .500 | .375 | 3/8-16x1" | ||||
訂購：89-定位組件多板定位鎖 JHN17
