與英制PPSL系列不同的是: PPSM系列, 其螺絲和鎖緊
銷釘采用的是公制標準。
Different from U.K stardard PPSL series:
the screw and dowel pins in PPSM are in metric system stardard .
| Material 材質 | Hardness 硬度 |
|---|---|
| 8620steel | HRC58°~62° |
| Type | 尺寸/ Dimension | 荷重 /load | Screw 限位螺絲 | ||||||||||

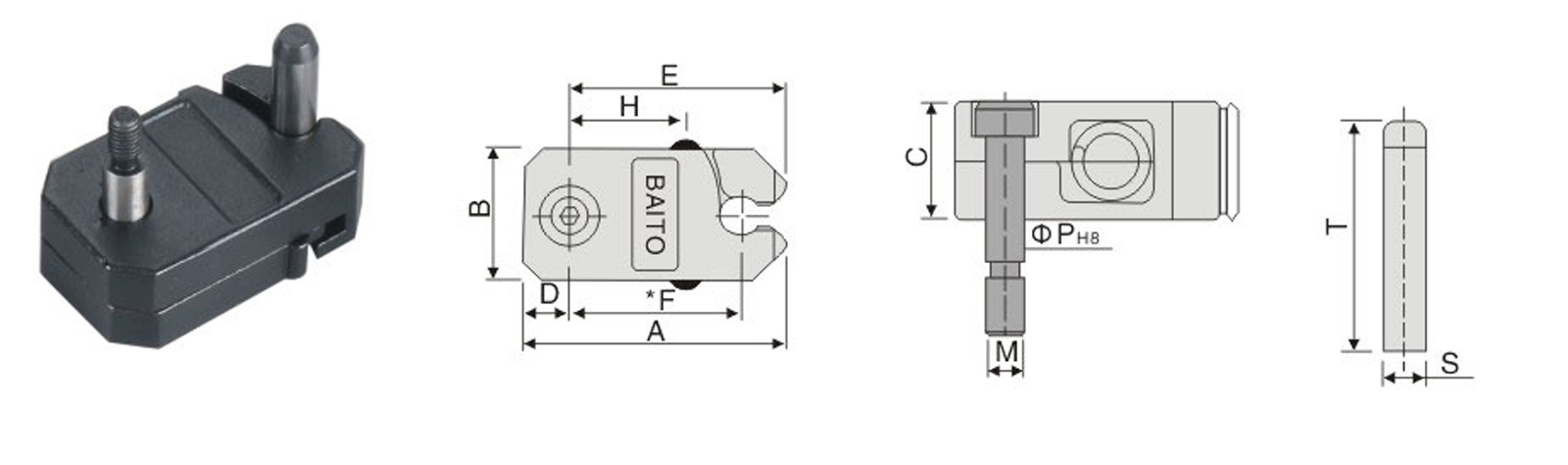

| A | B | C | D | E | *F | H | P | M | S | T | Kgf | ||
| JHN19-01 | 38 | 19 | 16 | 7 | 31.5 | 24.89 | 15.5 | 6 | M5 | 6 | 32 | 10 | PM5x20 |
| JHN19-02 | 54 | 32 | 20 | 11 | 43.0 | 34.93 | 22.5 | 8 | M6 | 8 | 40 | 20 | PM6x25 |
| JHN19-03 | 86 | 45 | 30 | 19 | 67.0 | 53.98 | 40.0 | 10 | M8 | 10 | 60 | 40 | PM8x40 |
相対來說, 該系列的限位夾"F"·距高更短,
鎖住的配合更加精密。
Relative, "F" length in this series is shorter,
and the lock cooperate more precision.
| Material 材質 | Hardness 硬度 |
|---|---|
| 8620steel | HRC58°~62° |
| Type | 尺寸/ Dimension | 荷重 /load | Screw 限位螺絲 | ||||||||||

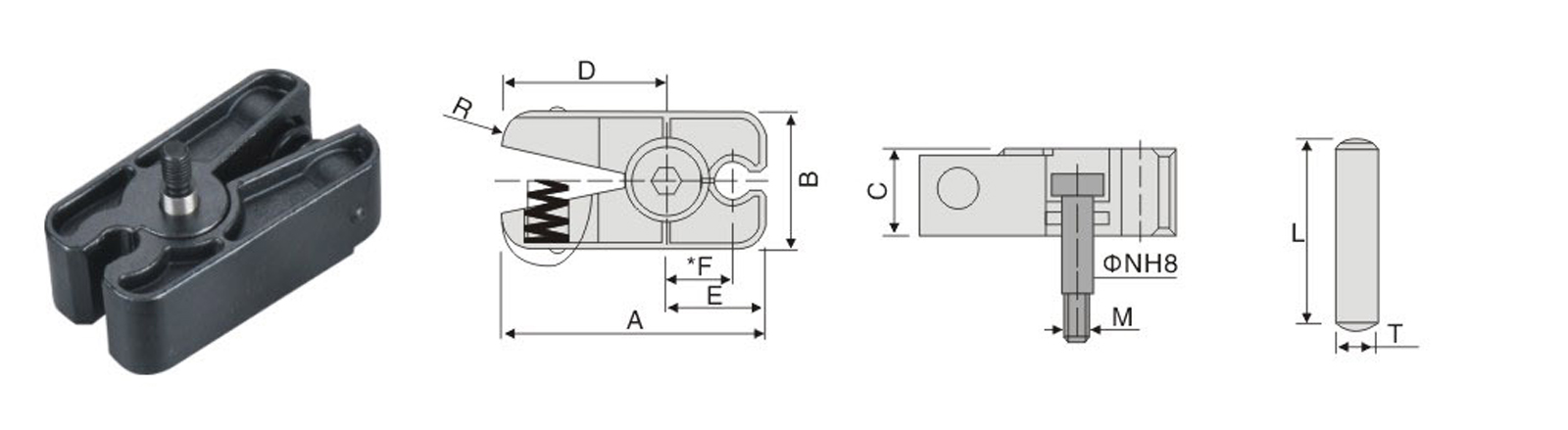

| A | B | C | D | E | *F | R | M | N | T | L | Kgf | ||
| JHN20-10M | 38 | 19 | 16 | 22 | 16 | 9.15 | 5 | M5 | 6 | 6 | 30 | 10 | PM5x16 |
| JHN20-20M | 54 | 32 | 20 | 33 | 21 | 12.7 | 6 | M6 | 8 | 8 | 40 | 20 | PM6x20 |
| JHN20-40M | 86 | 45 | 30 | 53 | 33 | 20.3 | 10 | M8 | 10 | 10 | 60 | 40 | PM8x30 |
訂購：92-限位夾 JHN19
