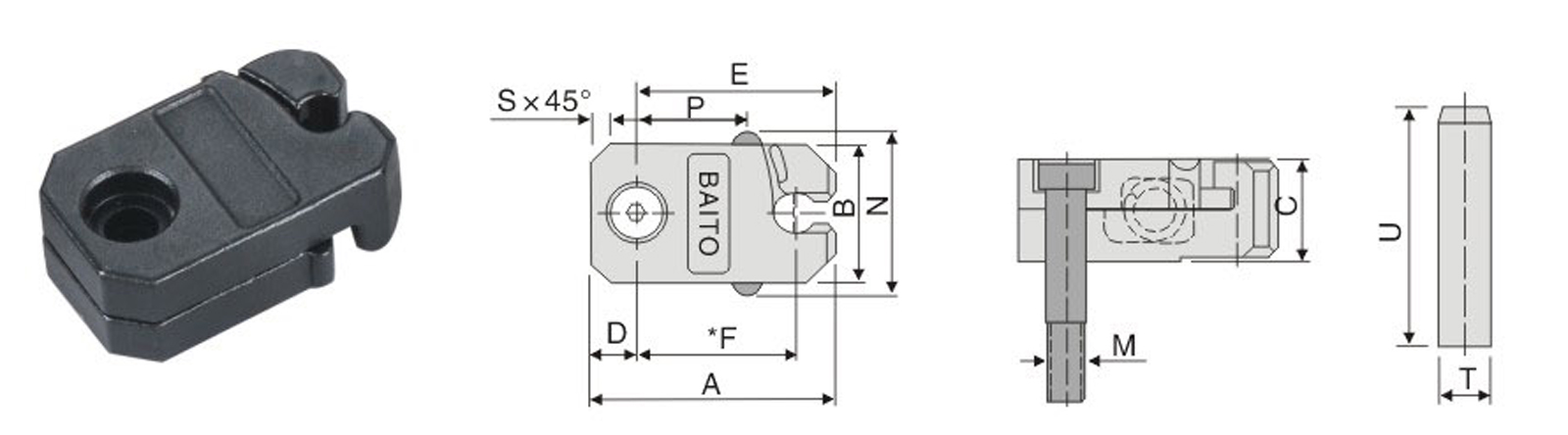

簡單經濟、堅固耐用。能使用單個或多個限位夾, 以達到
更大的荷重。
Simple and economical,firmly and durable .Can use one or
more clamps to bear more load.
| Material 材質 | Hardness 硬度 |
|---|---|
| 8620steel | HRC58°~62° |
| Type | 尺寸/Dimension | 荷重/load | |||||||||||
| A | B | C | D | E | *F | N | P | S | T | U | M | Kgf | |
| JHN21-01 | 1.50 | .76 | .63 | .27 | 1.23 | .980 | .94 | .61 | .14 | .250 | 1.25 | .249 | 10 |
| JHN21-02 | 2.13 | 1.26 | .79 | .44 | 1.69 | 1.375 | 1.44 | .88 | .25 | .312 | 1.50 | .3115 | 20 |
| JHN21-03 | 3.38 | 1.76 | 1.18 | .75 | 2.63 | 2.125 | 1.94 | 1.57 | .38 | .375 | 2.25 | .374 | 40 |

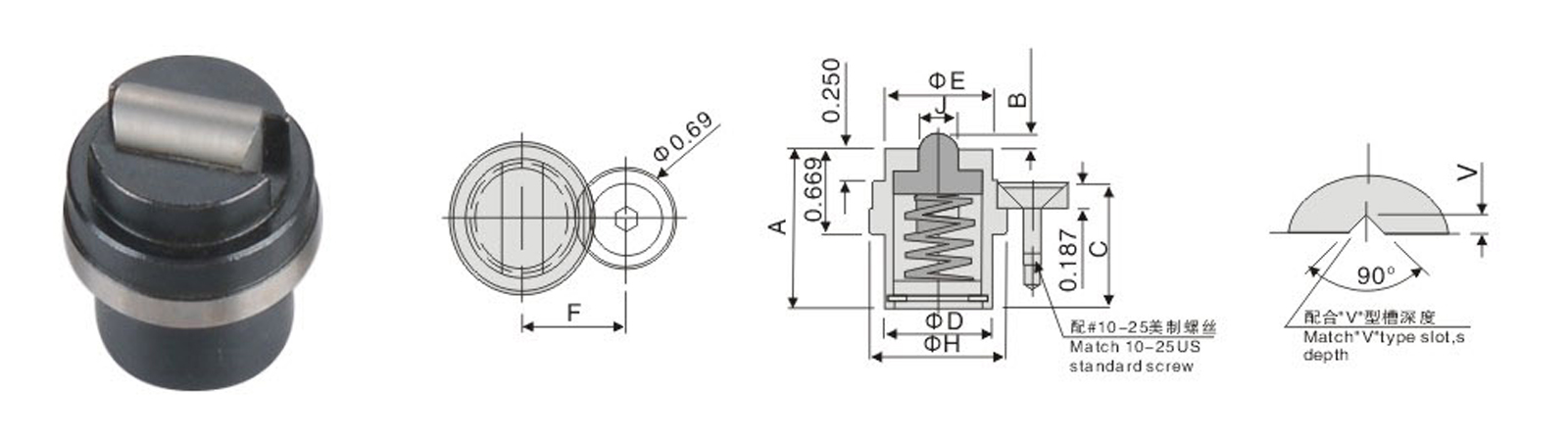

獨立的設計、 一體化的裝置、 安裝簡單。外形雖小, 但是
具有一定的荷重。
Independent design, integrated device ,easy to install.
Small in shape but can bear certain load.
| Material 材質 | Hardness 硬度 |
|---|---|
| H-13 steel | HRC48°~52° |
| Type | 尺寸/Dimension | 荷重/load | ||||||||
| A | B | C | ΦD | ΦE | F | ΦH | J | V | Kgf | |
| JHN22-01 | 1.08 | .072 | .795 | .620 | .630 | .375 | 0.866 | .188 | .091 | 4.5 |
| JHN22-02 | 1.32 | .121 | 1.035 | .740 | .748 | .420 | .984 | .250 | .153 | 9 |
| JHN22-03 | 1.26 | .149 | .975 | .870 | .866 | .466 | 1.102 | .312 | .194 | 18 |
訂購：93-限位夾 JHN21
