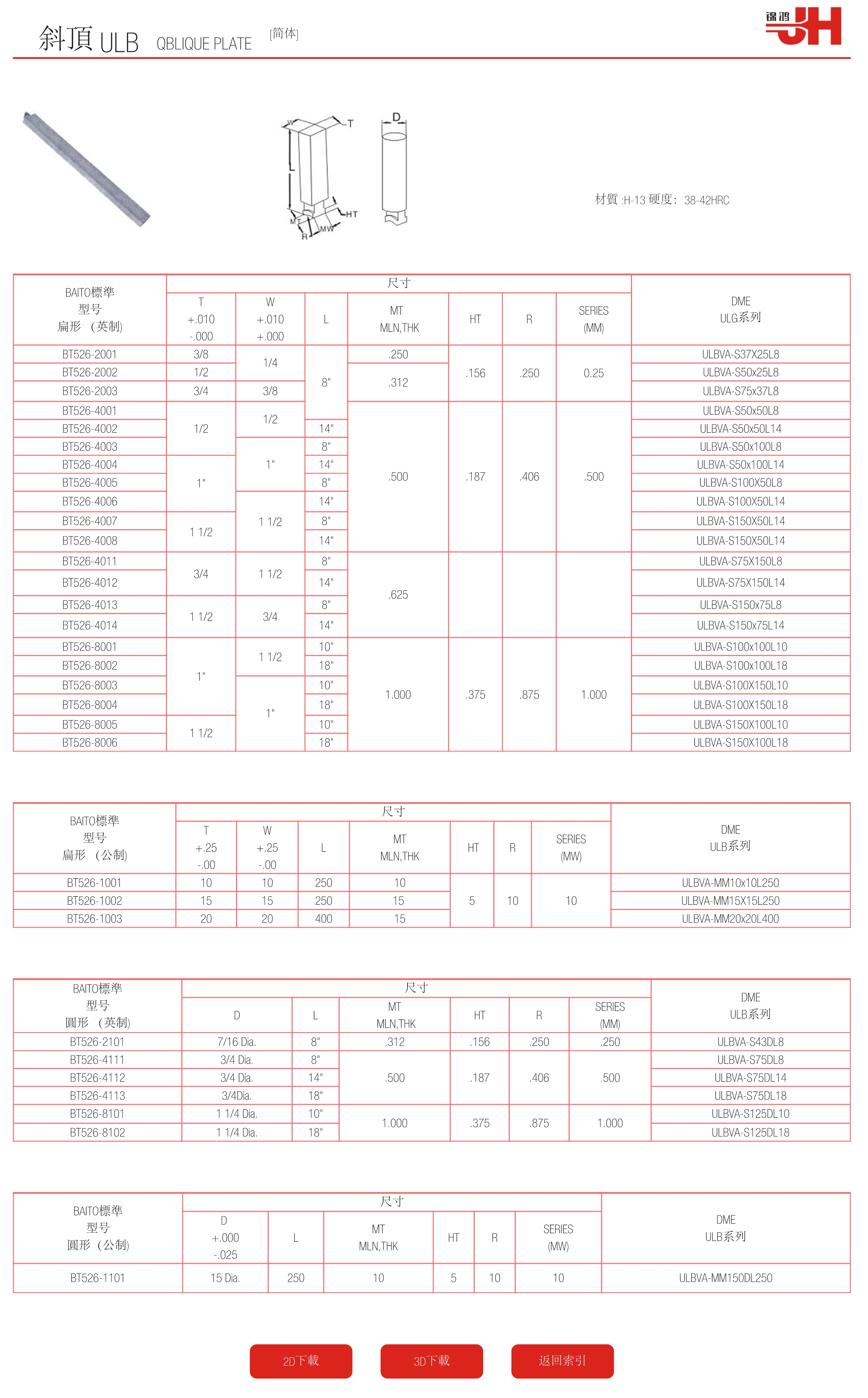

材質 :H-13 硬度：38-42HRC

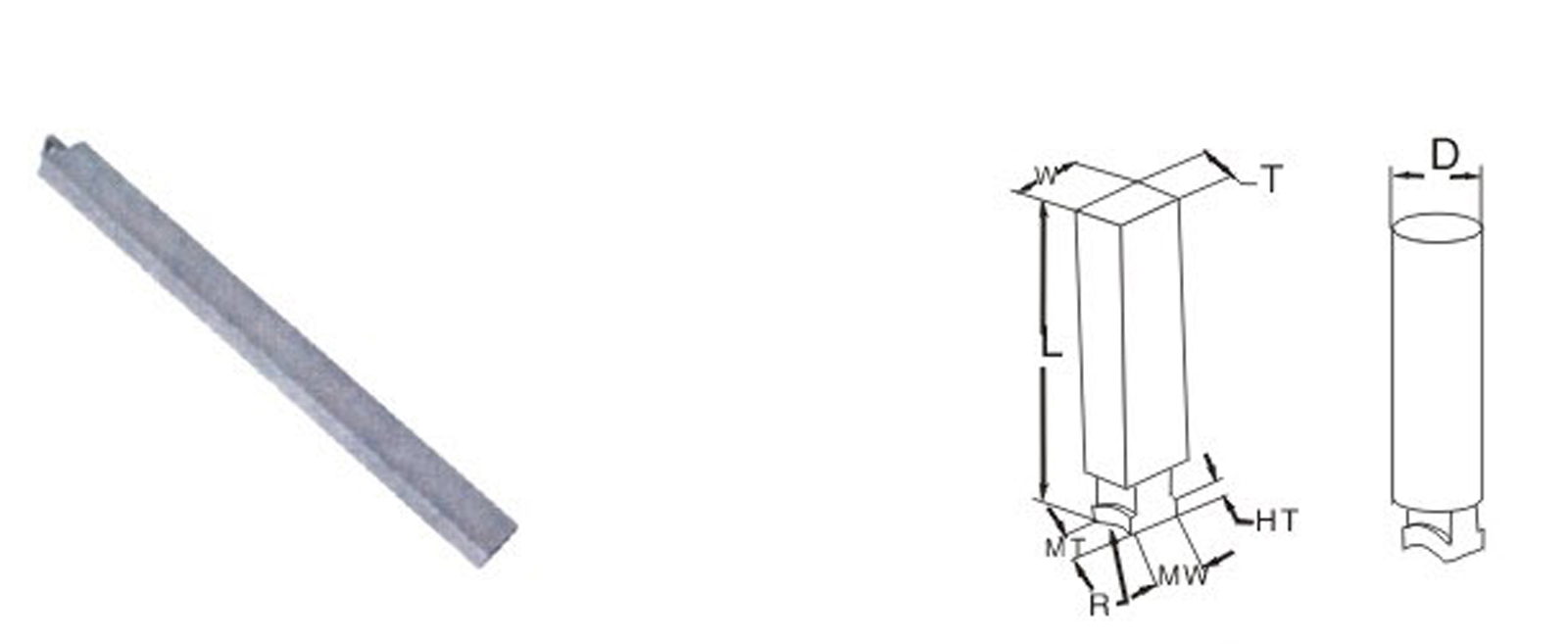

| BAITO標準 型號 扁形 （英制) | 尺寸 | DME ULG系列 | ||||||
| T +.010 -.000 | W +.010 +.000 | L | MT MLN,THK | HT | R | SERIES (MM) | ||
| BT526-2001 | 3/8 | 1/4 | 8" | .250 | .156 | .250 | 0.25 | ULBVA-S37X25L8 |
| BT526-2002 | 1/2 | .312 | ULBVA-S50x25L8 | |||||
| BT526-2003 | 3/4 | 3/8 | ULBVA-S75x37L8 | |||||
| BT526-4001 | 1/2 | 1/2 | .500 | .187 | .406 | .500 | ULBVA-S50x50L8 | |
| BT526-4002 | 14" | ULBVA-S50x50L14 | ||||||
| BT526-4003 | 1" | 8" | ULBVA-S50x100L8 | |||||
| BT526-4004 | 1" | 14" | ULBVA-S50x100L14 | |||||
| BT526-4005 | 8" | ULBVA-S100X50L8 | ||||||
| BT526-4006 | 1 1/2 | 14" | ULBVA-S100X50L14 | |||||
| BT526-4007 | 1 1/2 | 8" | ULBVA-S150X50L14 | |||||
| BT526-4008 | 14" | ULBVA-S150X50L14 | ||||||
| BT526-4011 | 3/4 | 1 1/2 | 8" | .625 | ULBVA-S75X150L8 | |||
| BT526-4012 | 14" | ULBVA-S75X150L14 | ||||||
| BT526-4013 | 1 1/2 | 3/4 | 8" | ULBVA-S150x75L8 | ||||
| BT526-4014 | 14" | ULBVA-S150x75L14 | ||||||
| BT526-8001 | 1" | 1 1/2 | 10" | 1.000 | .375 | .875 | 1.000 | ULBVA-S100x100L10 |
| BT526-8002 | 18" | ULBVA-S100x100L18 | ||||||
| BT526-8003 | 1" | 10" | ULBVA-S100X150L10 | |||||
| BT526-8004 | 18" | ULBVA-S100X150L18 | ||||||
| BT526-8005 | 1 1/2 | 10" | ULBVA-S150X100L10 | |||||
| BT526-8006 | 18" | ULBVA-S150X100L18 | ||||||
| BAITO標準 型號 扁形 （公制) | 尺寸 | DME ULB系列 | ||||||
| T +.25 -.00 | W +.25 -.00 | L | MT MLN,THK | HT | R | SERIES (MW) | ||
| BT526-1001 | 10 | 10 | 250 | 10 | 5 | 10 | 10 | ULBVA-MM10x10L250 |
| BT526-1002 | 15 | 15 | 250 | 15 | ULBVA-MM15X15L250 | |||
| BT526-1003 | 20 | 20 | 400 | 15 | ULBVA-MM20x20L400 | |||
| BAITO標準 型號 圓形 （英制) | 尺寸 | DME ULB系列 | |||||
| D | L | MT MLN,THK | HT | R | SERIES (MM) | ||
| BT526-2101 | 7/16 Dia. | 8" | .312 | .156 | .250 | .250 | ULBVA-S43DL8 |
| BT526-4111 | 3/4 Dia. | 8" | .500 | .187 | .406 | .500 | ULBVA-S75DL8 |
| BT526-4112 | 3/4 Dia. | 14" | ULBVA-S75DL14 | ||||
| BT526-4113 | 3/4Dia. | 18" | ULBVA-S75DL18 | ||||
| BT526-8101 | 1 1/4 Dia. | 10" | 1.000 | .375 | .875 | 1.000 | ULBVA-S125DL10 |
| BT526-8102 | 1 1/4 Dia. | 18" | ULBVA-S125DL18 | ||||
| BAITO標準 型號 圓形（公制) | 尺寸 | DME ULB系列 | |||||
| D +.000 -.025 | L | MT MLN,THK | HT | R | SERIES (MW) | ||
| BT526-1101 | 15 Dia. | 250 | 10 | 5 | 10 | 10 | ULBVA-MM150DL250 |
訂購：195-斜頂U(kuò)LB
