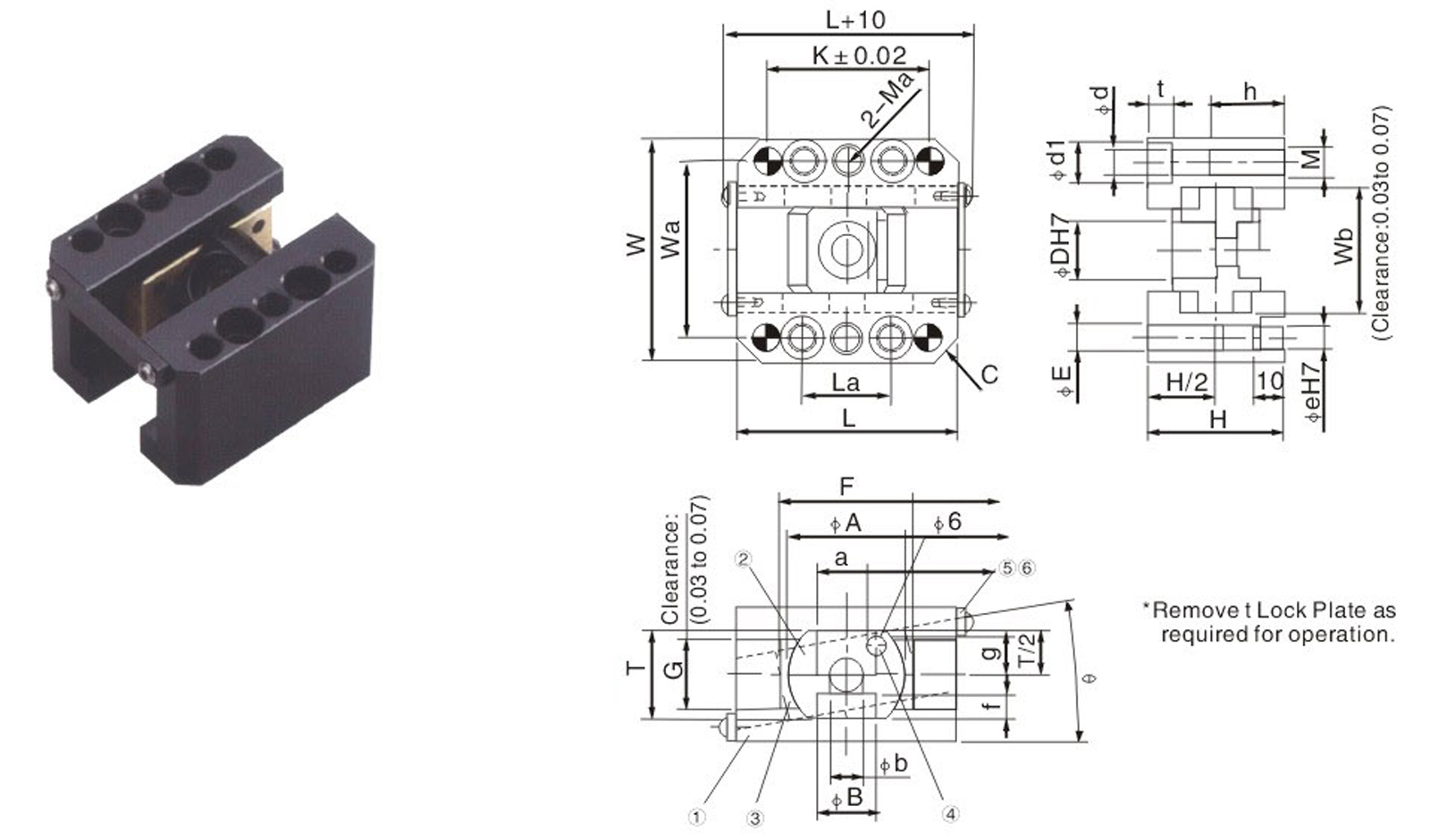

Table of Components
| No | Description | Qty | Material and Romark |
| ① | Guide Rail | 2 | S45C( I C45 A 1045) |
| ② | Inclined pin Holder | 1 | S4SC( I C45 A 1045) |
| ③ | Slide Plate | 2 | Bronze with Graphite |
| ④ | Loosening Lock | 1 | SK5M |
| ⑤ | Lock Plate | 2 | Ss400( A A36-89d,283-88) |
| ⑥ | Rlund Head Screw | 4 | SCM435(I 34CrMo4 A 4137) |
| D | W | Wa | L | La | K | Ma | C | H | e | E | d | d1 | t | h | M | Wb |
| 8 | 41 | 33 | 44 | 12 | 25 | M4 | 3 | 24 | 4 | 5 | 3.4 | 6 | 3.4 | 10 | M4 | 24 |
| 10 | 47 | 38 | 50 | 16 | 30 | M5 | 3 | 28 | 5 | 5.5 | 4.5 | 8 | 5 | 15 | M5 | 28 |
| 12 | 53 | 42 | 60 | 20 | 40 | M8 | 4 | 36 | 6 | 7 | 6.6 | 11 | 4.8 | 20 | M8 | 31 |
| 16 | 64 | 50 | 70 | 25 | 50 | M8 | 6 | 40 | 6 | 6.6 | 6.6 | 11 | 6.5 | 20 | M8 | 36 |
| 20 | 76 | 60 | 75 | 30 | 55 | M10 | 8 | 46 | 8 | 9 | 8.6 | 14 | 8.5 | 25 | M10 | 43 |
| 25 | 81 | 65 | 85 | 40 | 65 | MO | 8 | 48 | 8 | 9 | 8.6 | 14 | 8.5 | 25 | M10 | 48 |
| 30 | 88 | 72 | 100 | 50 | 80 | M10 | 8 | 54 | 8 | 9 | 8.6 | 14 | 8.5 | 25 | M10 | 55 |
| 35 | 100 | 80 | 115 | 50 | 85 | M12 | 8 | 60 | 10 | 11 | 11 | 18 | 6.5 | 30 | M12 | 64 |
| 40 | 108 | 88 | 125 | 50 | 85 | M12 | 8 | 65 | 10 | 11 | 11 | 18 | 7 | 30 | M12 | 72 |
訂購：199-斜頂座KOCUF
