| Iten | 構成零件 | Parts Name | Material | Quantity |
| 1 | 滑動基座 | Slide Base | S50C | 2 |
| 2 | 斜推桿固定座 | Inclined pin Holder | SCM440 | 1 |
| 3 | 滑闆 | Slide Plate | *CAC304+固體潤滑劑 | 2 |
| 4 | 平行鍵 | Key | S45C | 1 |
| 5 | 鎖緊螺母 | Lock Nut | S45C | 1 |
| 6 | 調整螺母 | Adjust Rod | S45C | 1 |
| 7 | 停止闆 | Stopper | SS400 | 2 |

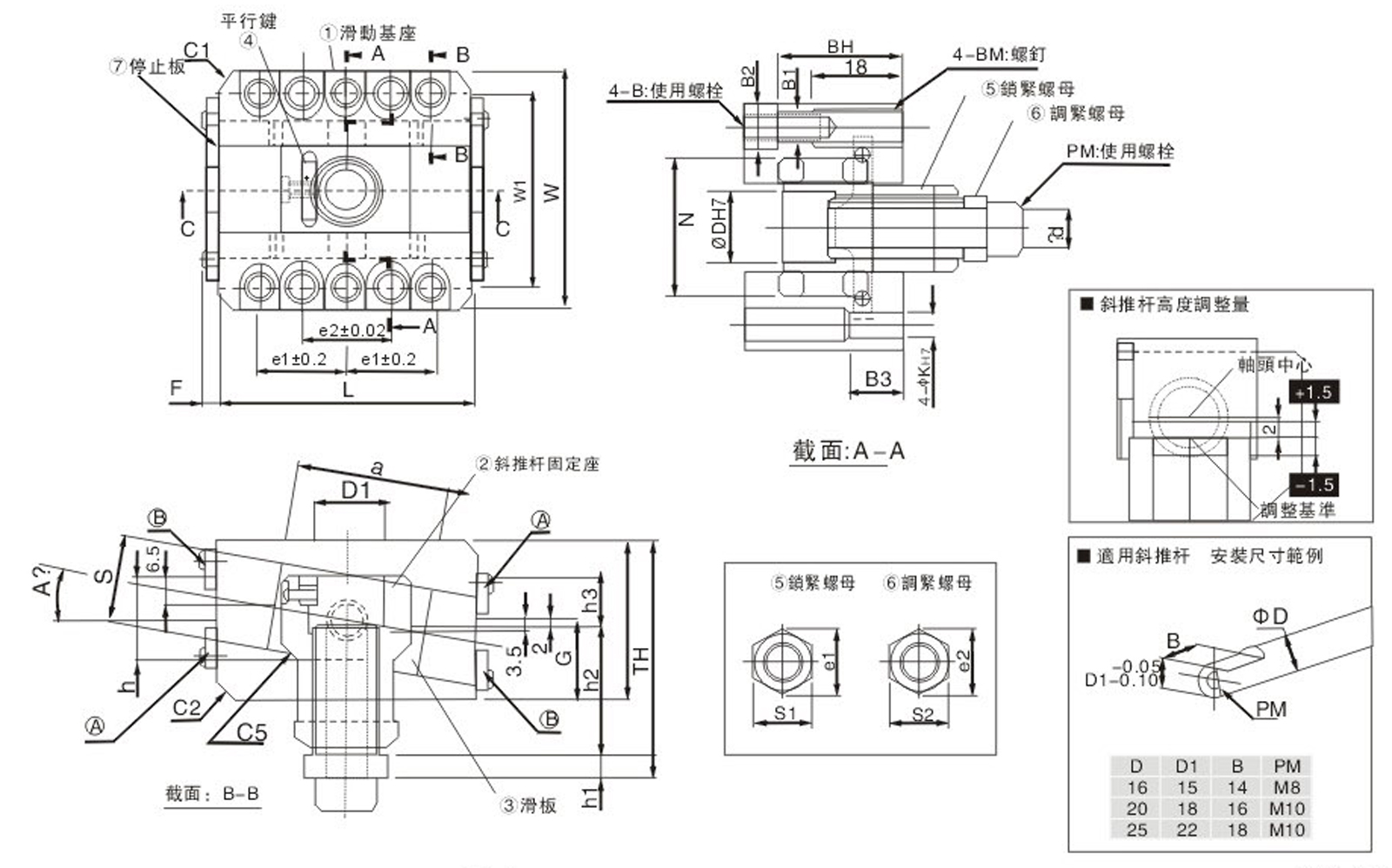

| Catalog No. | 滑闆安裝角度A° | ①滑闆基座 | ②斜推桿固定座 | ③滑板 | TH | G | F | ||||||||||||
| Type | D | W | L | H | C1 | C2 | D1 | d | h | h1 | h2 | h3 | N | S | a | ||||
| GASA | 12 | 0 1 3 5 | 56 | 55 | 35 | 5 | - | 11 | 5.5 | 16 | 6 | 33 | 10 | 30 | 20 | 35 | 58.5 | 17.5 | 4.65 |
| 16 | 60 | 65 | 36 | 6 | - | 15 | 9 | 18 | 6 | 33 | 11 | 33 | 20 | 40 | 59 | 18 | 4.65 | ||
| 20 | 68 | 70 | 43 | 6 | 5 | 18 | 11 | 22 | 6 | 36 | 13 | 38 | 24 | 40 | 65.5 | 21.5 | 4.65 | ||
| 25 | 75 | 80 | 45 | 6 | 5 | 22 | 11 | 26 | 6 | 39 | 15 | 45 | 26 | 45 | 69.5 | 22.5 | 4.65 | ||
| 30 | 81 | 95 | 54 | 6 | 5 | 27.5 | 11 | 30 | 6 | 41 | 17 | 55 | 30 | 55 | 76 | 27 | 4.65 | ||
| 35 | 98 | 110 | 60 | 6 | 5 | 32.5 | 13 | 36 | 6 | 50 | 20 | 60 | 34 | 70 | 88 | 30 | 5.2 | ||
| 40 | 105 | 120 | 64 | 6 | 5 | 37.5 | 13 | 40 | 6 | 52 | 22 | 67 | 38 | 80 | 92 | 32 | 5.2 | ||
| Catalog No. | 安裝孔尺寸 | ⑤鎖緊螺母 | ⑥調整螺母 | 斜推桿安裝尺寸 | 停卡闆安裝位置 | ||||||||||||||
| Type | D | l1 | l2 | W1 | B1 | B2 | B3 | B | BM | BH | K | S1 | e1 | S2 | e2 | h4 | PM | A | B |
| GASA | 12 | 42 | 21 | 45 | 6.6 | 11 | 15 | M6 | M8 | 28.5 | 6 | 17 | 19.6 | 12 | 13.9 | 13 | M5 | 1°1°3°5° | - |
| 16 | 46 | 25 | 48 | 6.6 | 11 | M6 | M8 | 29.5 | 6 | 21 | 24.2 | 16 | 18.5 | 14 | M8 | 0°1°3°5° | - | ||
| 20 | 50 | 25 | 55 | 8.6 | 13.5 | M8 | M10 | 34.5 | 8 | 24 | 27.7 | 19 | 21.9 | 16 | M10 | 5° | 0° 1° | ||
| 25 | 60 | 35 | 62 | 8.6 | 13.5 | 20 | M8 | M10 | 36.5 | 8 | 24 | 27.7 | 19 | 21.9 | 18 | M10 | 5° | 0° 1 | |
| 30 | 75 | 50 | 68 | 8.6 | 13.5 | M8 | M10 | 45.5 | 8 | 24 | 27.7 | 19 | 21.9 | 20 | M10 | 0°1°3°5 | - | ||
| 35 | 85 | 50 | 81 | 10.6 | 16.5 | M10 | M12 | 49.5 | 10 | 27 | 31.2 | 21 | 24.2 | 23 | M12 | ||||
| 40 | 95 | 60 | 88 | 10.6 | 16.5 | M10 | M12 | 53.5 | 10 | 27 | 31.2 | 21 | 24.2 | 25 | M12 | ||||

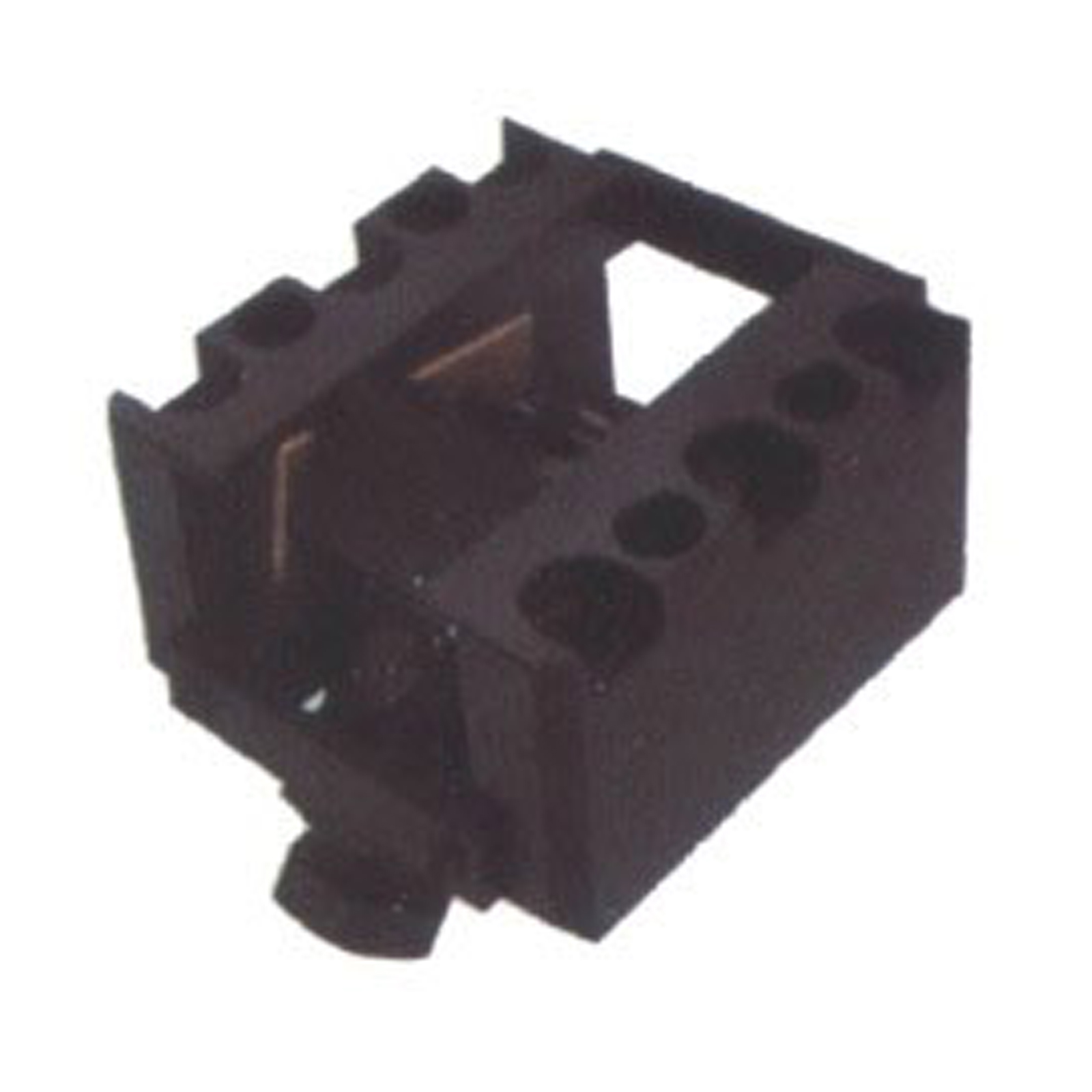

訂購：200-斜楔用無給油滑塊組件（調整型）GASA
