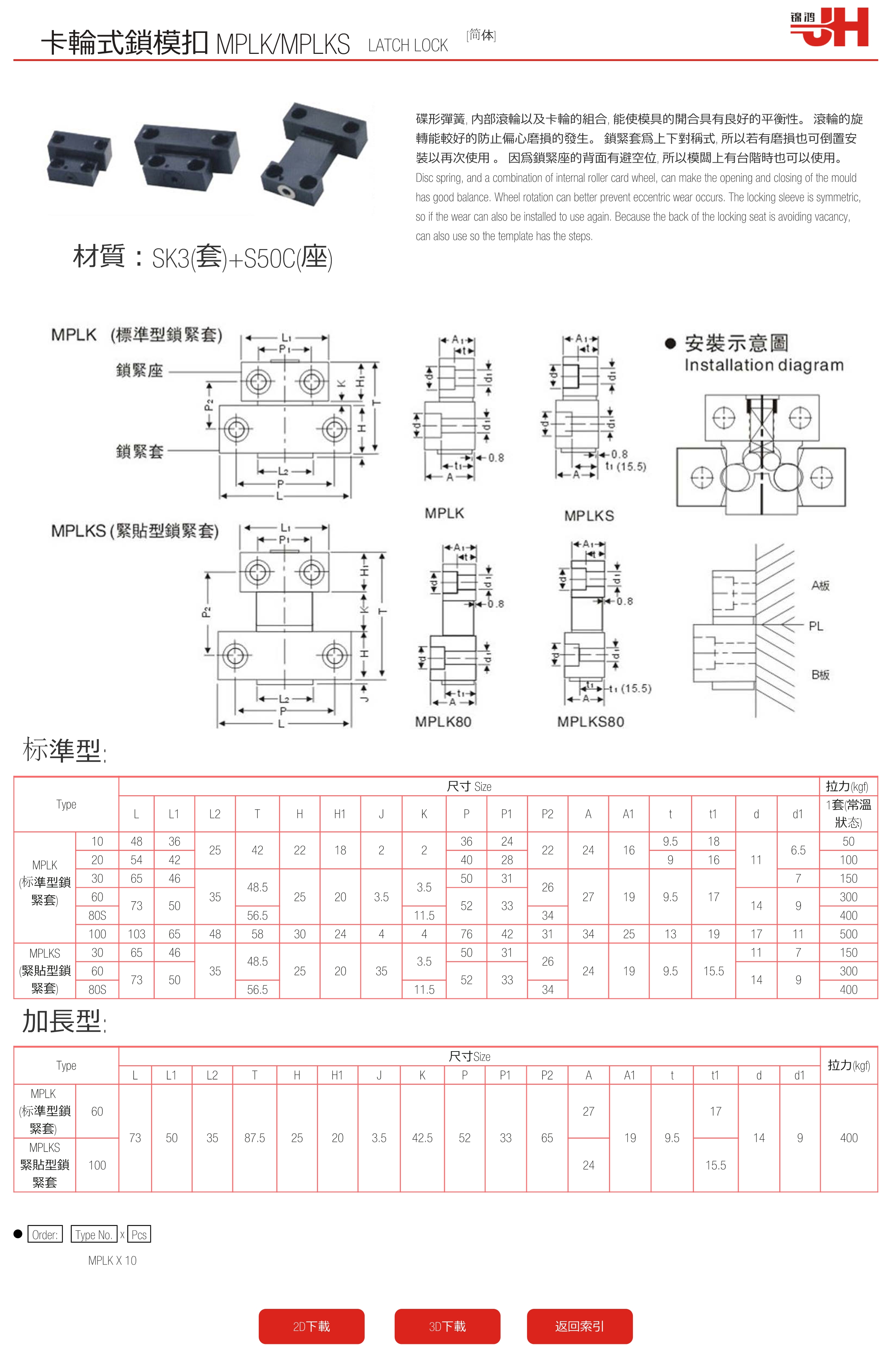

122-卡輪式鎖模扣 MPLK-MPLKS

型號： MMPLKS -[待選參數]

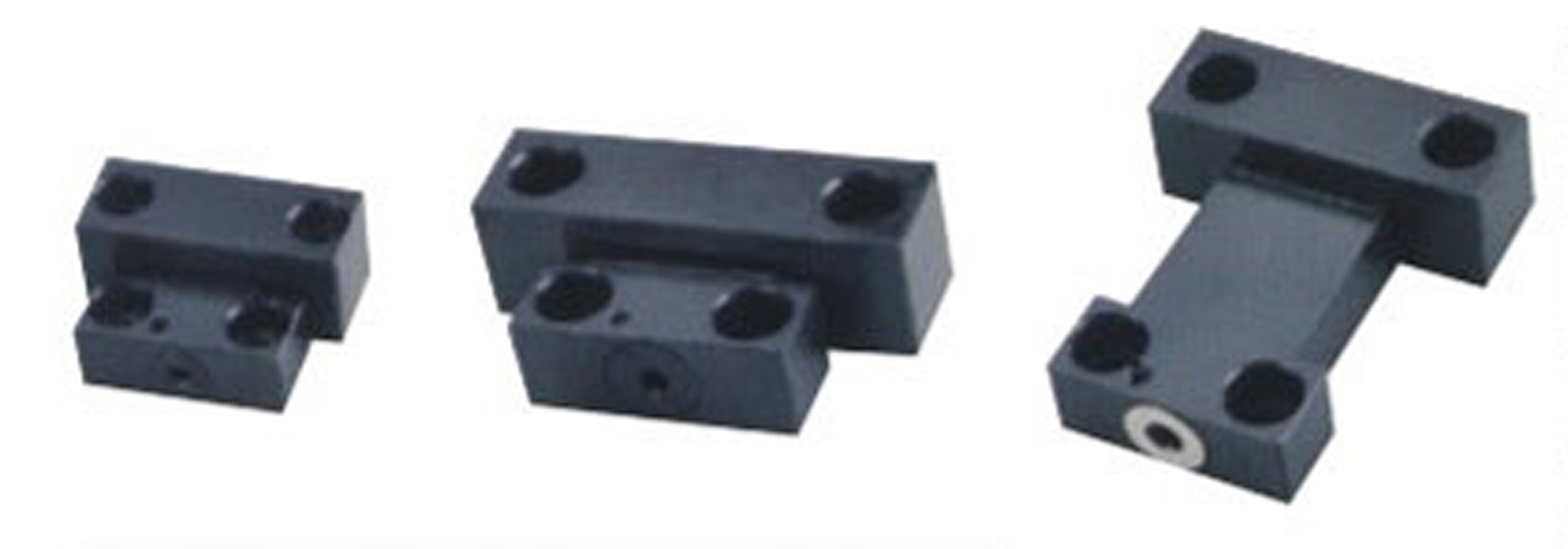

卡輪式鎖模扣 MPLK/MPLKS

LATCH LOCK

材質：SK3(套)+S50C(座)

碟形彈簧, 內部滾輪以及卡輪的組合, 能使模具的開合具有良好的平衡性。滾輪的旋轉能較好的防止偏心磨損的發生。鎖緊套爲上下對稱式, 所以若有磨損也可倒置安裝以再次使用。因爲鎖緊座的背面有避空位, 所以模板上有臺階時也可以使用。
Disc spring, and a combination of internal roller card wheel, can make the opening and closing of the mould has good balance. Wheel rotation can better prevent eccentric wear occurs. The locking sleeve is symmetric, so if the wear can also be installed to use again. Because the back of the locking seat is avoiding vacancy, can also use so the template has the steps.

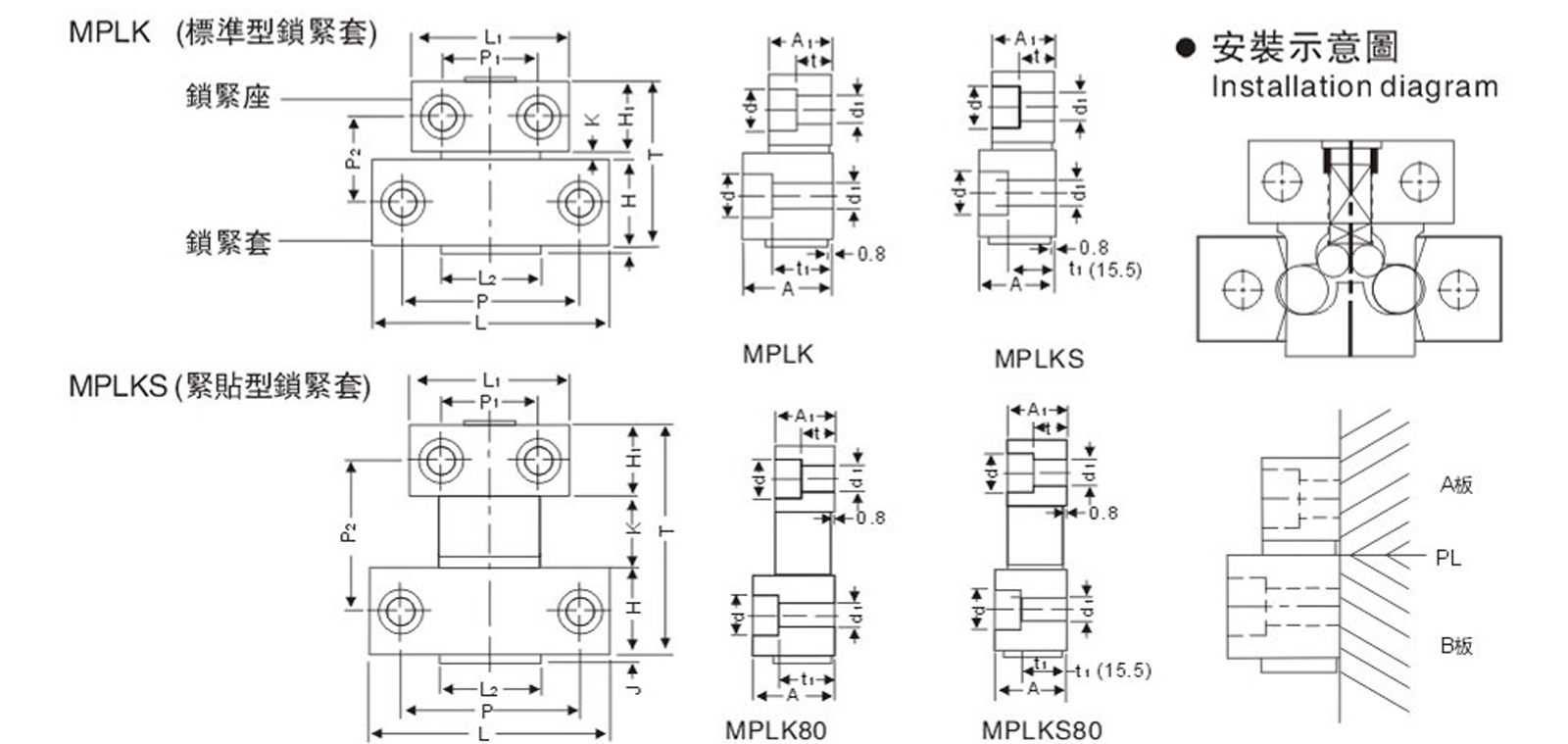

標準型:

Type		尺寸 Size																	拉力
		L	L1	L2	T	H	H1	J	K	P	P1	P2	A	A1	t	t1	d	d1	1套(常溫狀態)
MPLK (標準型鎖緊套)	10	48	36	25	42	22	18	2	2	36	24	22	24	16	9.5	18	11	6.5	50
	20	54	42							40	28				9	16			100
	30	65	46	35	48.5	25	20	3.5	3.5	50	31	26	27	19	9.5	17		7	150
	60	73	50							52	33						14	9	300
	80S				56.5				11.5			34							400
	100	103	65	48	58	30	24	4	4	76	42	31	34	25	13	19	17	11	500
MPLKS (緊貼型鎖緊套)	30	65	46	35	48.5	25	20	35	3.5	50	31	26	24	19	9.5	15.5	11	7	150
	60	73	50							52	33						14	9	300
	80S				56.5				11.5			34							400

加長型:

Type		尺寸Size																	拉力
		L	L1	L2	T	H	H1	J	K	P	P1	P2	A	A1	t	t1	d	d1
MPLK (標準型鎖緊套)	60	73	50	35	87.5	25	20	3.5	42.5	52	33	65	27	19	9.5	17	14	9	400
MPLKS 緊貼型鎖緊套	100												24			15.5
