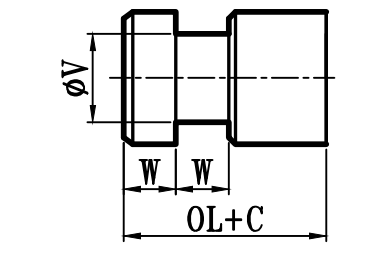

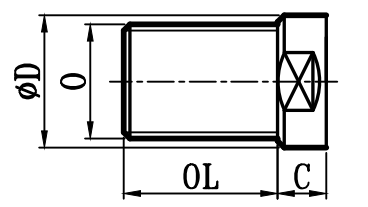

| JOR-M | I(內牙型) | E(外牙型) | H型槽 | |||||||||||||||||||||||||

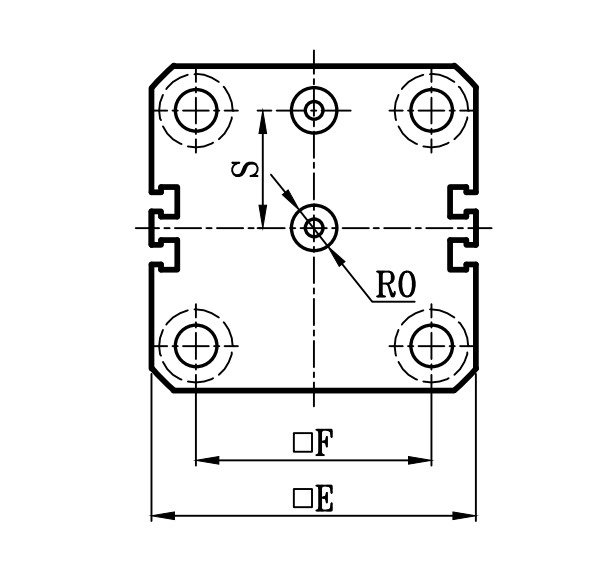

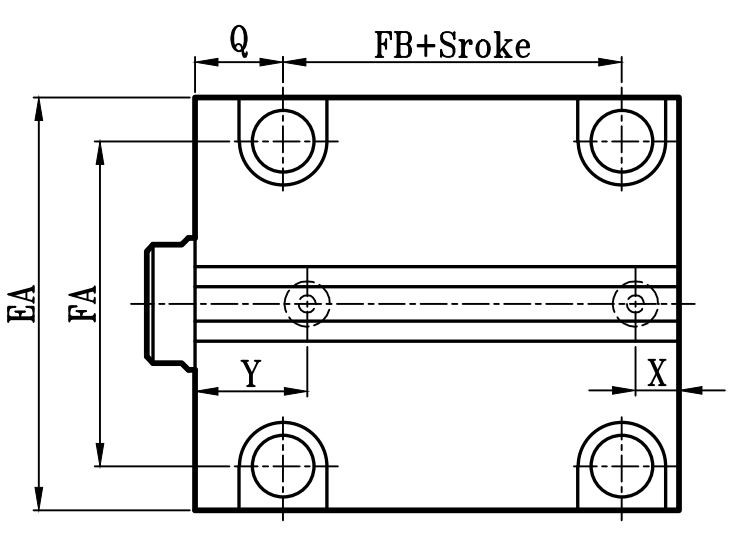

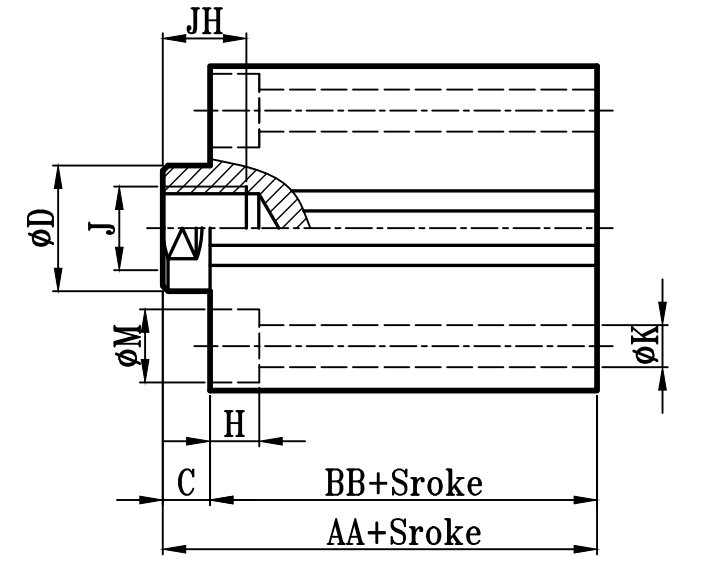

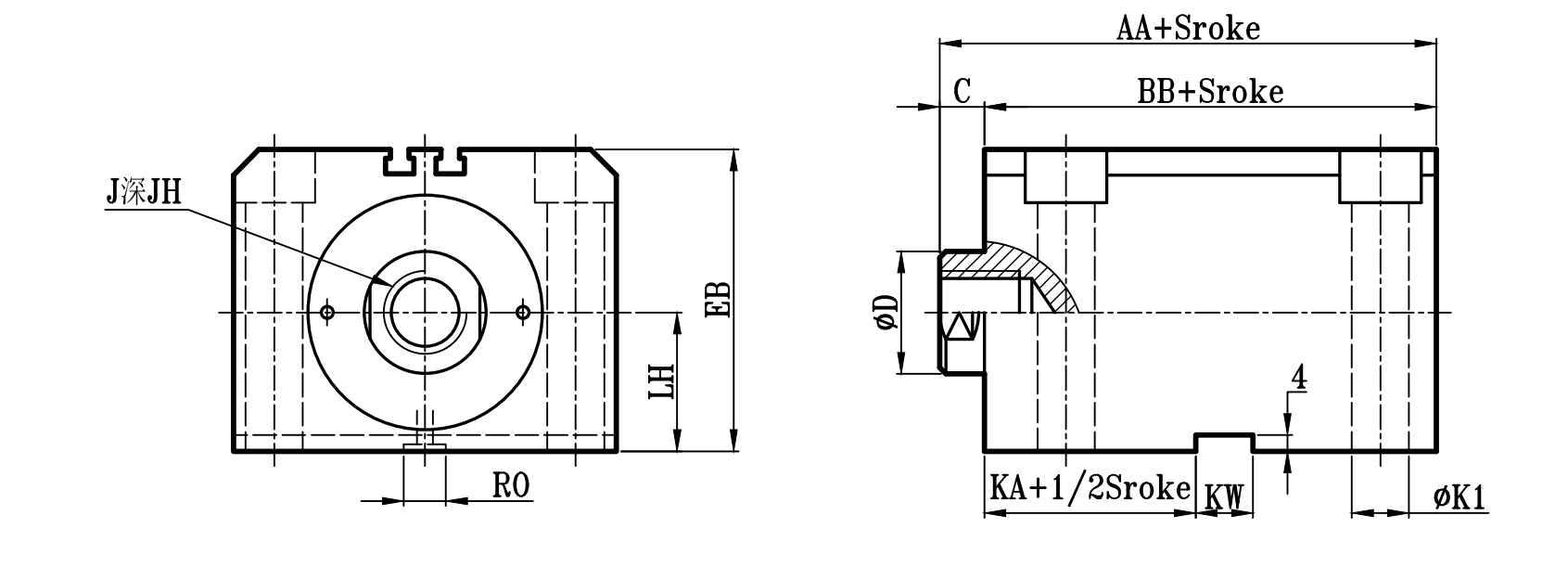

| 缸徑 BORE | AA | BB | C | ΦD | E | F | EA | FA | EB | LH | Q | FB | ΦK | ΦK1 | KA | KW | ΦM | H | Y | X | S | R0 | J | JH | 0 | OL | W | ΦV |
| Φ16 | 52.5 | 44.5 | 8 | 10 | 40 | 26.5 | 44 | 33 | 36 | 16 | 20 | 13 | 6 | 6 | 25 | 8 | 9.5 | 6 | 19.5 | 8 | 12 | Φ8深1.3 | M6xP1 | 15 | M8xP1.25 | 15 | 8 | 5 |
| Φ20 | 63 | 55 | 8 | 12 | 45 | 30 | 50 | 38 | 41 | 18 | 20 | 15 | 6 | 7 | 25 | 8 | 9.5 | 6 | 20.5 | 8 | 14.5 | Φ8深1.3 | M8xP1.25 | 15 | M10xP1.25 | 15 | 10 | 7 |
| Φ25 | 65 | 57 | 8 | 14 | 50 | 36 | 55 | 43 | 46 | 21 | 20 | 17 | 6 | 7 | 26 | 8 | 9.5 | 6 | 21 | 9 | 17 | Φ10深1.3 | M10xP1.5 | 15 | M12xP1.25 | 20 | 10 | 9 |
| Φ32 | 76 | 66 | 10 | 20 | 62 | 47 | 70 | 56 | 56 | 25 | 20 | 24 | 7 | 9 | 28 | 12 | 11 | 7 | 25 | 12 | 22 | Φ12深1.3 | M12xP1.75 | 20 | M16xP1.5 | 25 | 15 | 14 |
| Φ40 | 79 | 69 | 10 | 25 | 70 | 52 | 80 | 62 | 64 | 29 | 20 | 23 | 9 | 11 | 28 | 12 | 14 | 9 | 25 | 12.5 | 26 | Φ12深1.3 | M16xP2.0 | 20 | M22xP1.5 | 30 | 15 | 18 |
| Φ50 | 85 | 74 | 11 | 30 | 80 | 58 | 94 | 74 | 74 | 34 | 20 | 27 | 11 | 13 | 29 | 14 | 17 | 11 | 27.5 | 13.5 | 31 | Φ12深1.3 | M20xP2.5 | 25 | M26xP1.5 | 35 | 15 | 23 |
| Φ63 | 94 | 81 | 13 | 35 | 94 | 69 | 114 | 90 | 89 | 42 | 20 | 32 | 14 | 16 | 31 | 16 | 20 | 13 | 30 | 16 | 38 | Φ12深1.3 | M24xP3.0 | 30 | M30xP1.5 | 40 | 15 | 27 |
| Φ80 | 109 | 92 | 17 | 40 | 114 | 86 | 134 | 110 | 109 | 52 | 20 | 41 | 16 | 16 | 34 | 16 | 23 | 15 | 32 | 19 | 47 | Φ15深1.7 | M27xP3.0 | 35 | M36xP1.5 | 45 | 20 | 32 |
| Φ100 | 111 | 94 | 17 | 50 | 134 | 102 | 160 | 134 | 129 | 62 | 20 | 44 | 18 | 18 | 34 | 16 | 26 | 17 | 35.5 | 20 | 57 | Φ15深1.7 | M36xP4.0 | 40 | M40xP2.0 | 50 | 20 | 40 |
| Φ125 | 125 | 105 | 20 | 60 | 164 | 124 | 195 | 163 | 158 | 76 | 30 | 44 | 22 | 22 | 44 | 20 | 32 | 21 | 41 | 23 | 70 | Φ19深1.7 | M45xP4.5 | 45 | M50xP2.0 | 55 | 20 | 50 |
| Φ150 | 134 | 114 | 20 | 80 | 194 | 146 | 230 | 192 | 186 | 89 | 30 | 47 | 26 | 26 | 46 | 20 | 38 | 25 | 43.5 | 25 | 85 | Φ19深1.7 | M60xP5.5 | 45 | M70xP2.0 | 60 | 25 | 70 |
| Φ180 | 155 | 130 | 25 | 100 | 224 | 171 | 270 | 228 | 216 | 104 | 30 | 53 | 29 | 29 | 49 | 20 | 42 | 28 | 47 | 30 | 100 | Φ19深1.7 | M75xP6.0 | 50 | M90xP2.0 | 65 | 25 | 85 |
| Φ200 | 162 | 137 | 25 | 120 | 246 | 188 | 300 | 252 | 237 | 114 | 30 | 60 | 32 | 32 | 51 | 20 | 47 | 31 | 49 | 33 | 110 | Φ19深1.7 | M95xP6.0 | 50 | M100xP3.0 | 70 | 25 | 100 |
訂購：j0r-m-1
