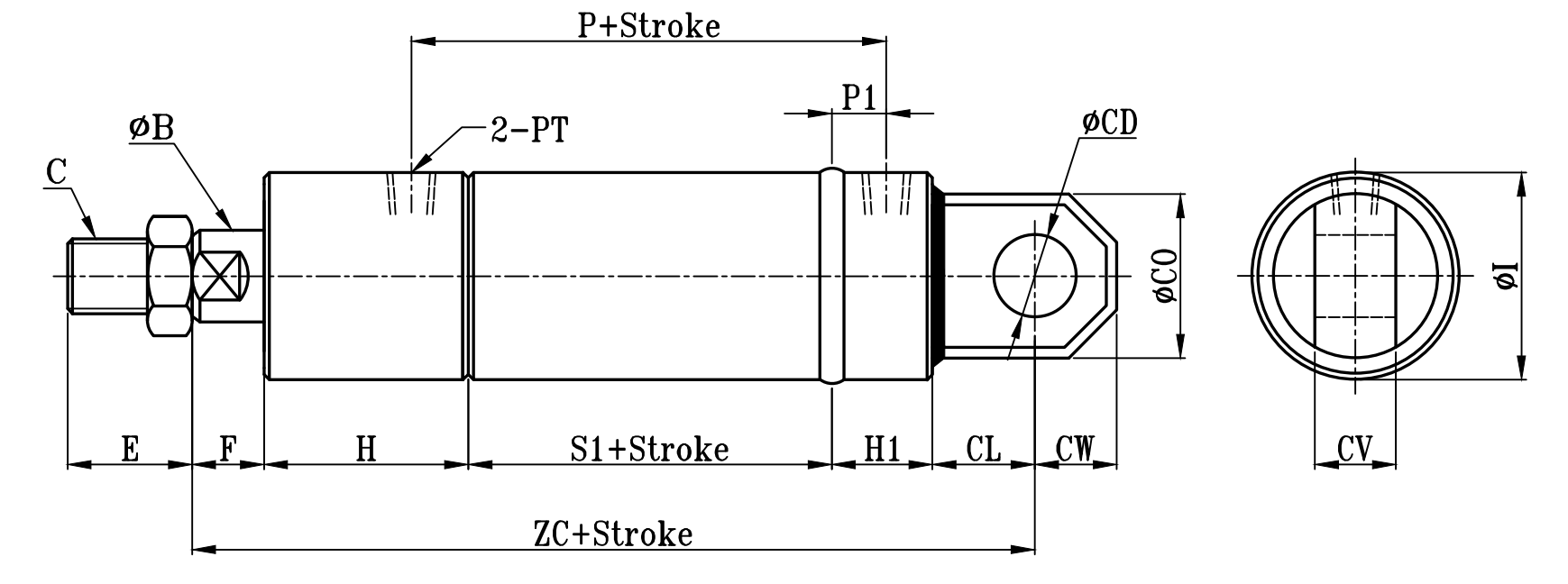

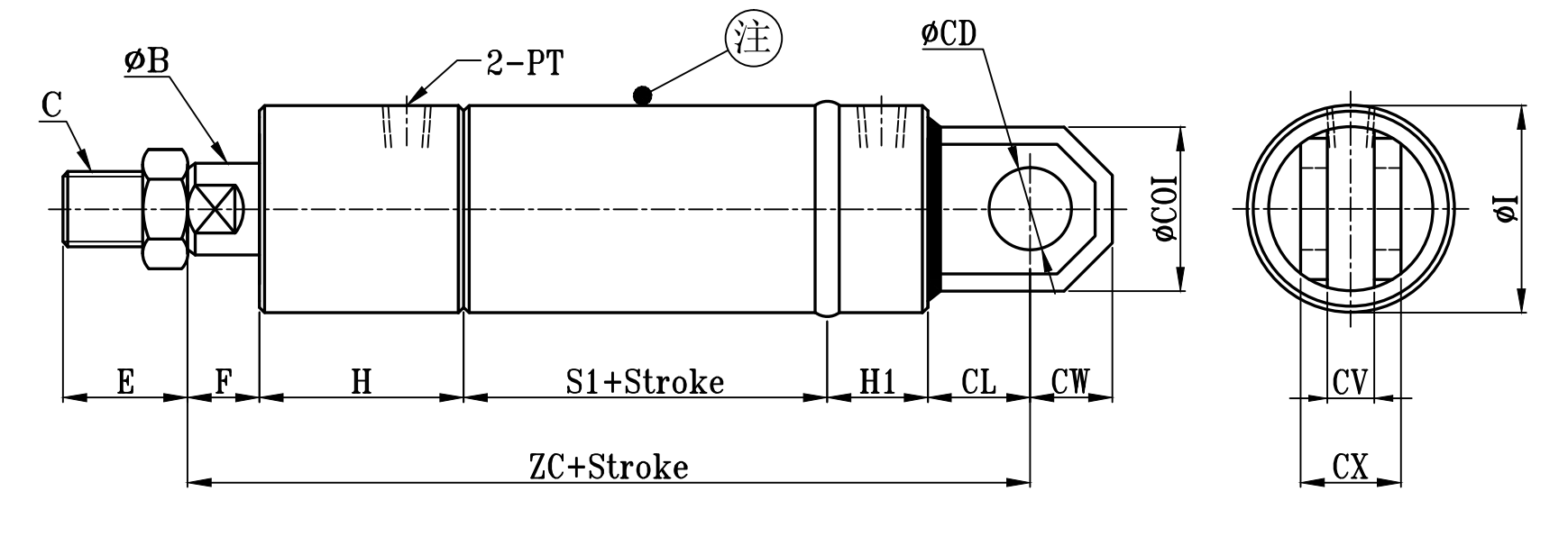

ROB:ROB+CA TYPE | 圓型中型油壓缸CA、CB板尺寸圖 14Mpa R0 Series CA,CB Dimensional Features |
 | |
ROD:ROD+CB TYPE
注:感應油缸時，不論是單軸還是雙軸缸，缸筒長度的選擇均為雙軸缸的缸筒長度
| ROB TYPE | CA-CB （后耳型）TYPE | ||||||||||||||||||
| 缸徑 BORE | ΦB | C | E | F | H1 | H | ΦI | P | P1 | PT | S1 | ZC | ΦCD | ΦCO | ΦCOI | CL | CW | CV | CX |
| Φ32 | 16 | M14xP1.5 | 30 | 15 | 25 | 50 | 42 | 81 | 10.5 | 1/4 | 60 | 172 | 16 | 34 | 42 | 22 | 16 | 16 | 32 |
| Φ40 | 20 | M16xP1.5 | 30 | 15 | 25 | 50 | 50 | 84 | 12 | 3/8 | 60 | 175 | 20 | 43 | 50 | 25 | 20 | 20 | 40 |
| Φ50 | 25 | M22xP1.5 | 40 | 20 | 30 | 60 | 60 | 95 | 12 | 3/8 | 71 | 211 | 25 | 54 | 60 | 30 | 25 | 25 | 50 |
| Φ63 | 35 | M30xP1.5 | 40 | 20 | 30 | 60 | 73 | 95 | 12 | 3/8 | 71 | 216 | 30 | 65 | 73 | 35 | 30 | 30 | 60 |
| Φ80 | 40 | M30xP1.5 | 45 | 25 | 35 | 70 | 92 | 113 | 15 | 1/2 | 83 | 258 | 35 | 75 | 83 | 45 | 35 | 35 | 70 |
| Φ100 | 50 | M40xP2.0 | 50 | 25 | 35 | 70 | 114 | 123 | 15 | 1/2 | 93 | 273 | 40 | 85 | 94 | 50 | 40 | 40 | 80 |
| Φ125 | 60 | M50xP2.0 | 60 | 30 | 40 | 80 | 140 | 136 | 19 | 3/4 | 98 | 310 | 50 | 105 | 124 | 62 | 50 | 50 | 100 |
| Φ140 | 70 | M60xP2.0 | 70 | 30 | 40 | 80 | 160 | 136 | 19 | 3/4 | 98 | 310 | 50 | 105 | 135 | 62 | 50 | 50 | 100 |
| Φ150 | 80 | M70xP2.0 | 80 | 30 | 45 | 90 | 168 | 153 | 19 | 3/4 | 113 | 350 | 60 | 127 | 139 | 72 | 60 | 60 | 120 |
| Φ160 | 80 | M70xP2.0 | 80 | 30 | 45 | 90 | 178 | 153 | 19 | 3/4 | 113 | 350 | 60 | 127 | 158 | 72 | 60 | 60 | 120 |
| Φ180 | 100 | M90xP2.0 | 100 | 35 | 50 | 100 | 200 | 177 | 23.5 | 1 | 130 | 420 | 80 | 160 | 184 | 105 | 80 | 80 | 160 |
| Φ200 | 100 | M90xP2.0 | 100 | 35 | 50 | 100 | 228 | 177 | 23.5 | 1 | 130 | 420 | 80 | 160 | 208 | 105 | 80 | 80 | 160 |
| Φ220 | 125 | M100xP3.0 | 110 | 35 | 55 | 110 | 250 | 203 | 28 | 1 1/4 | 147 | 467 | 90 | 190 | 230 | 120 | 90 | 90 | 180 |
| Φ250 | 125 | M100xP3.0 | 110 | 35 | 55 | 110 | 276 | 203 | 28 | 1 1/4 | 147 | 467 | 90 | 190 | 255 | 120 | 90 | 90 | 180 |
