| 鋁合金 Aluminum si<9% | 鎳基高溫合金 Nicle Based Alloy | 銅合金 CopperAlloy | 復合材料 Composite Material |
 | | |  |
| 不銹鋼 Stainless steel | 沉淀硬化不銹鋼 Preciptation hardeningStainless Steel | 鈦合金 Titanium Alloy | |
 | | | |
| 合金鋼 alloy Steel HRC<45 | 灰鑄鐵 Grey Cast Iron | 普通鋼 Commom Steel HRC<25 | 淬硬鋼 HarenedSteel HRC>62 |
| | | |
備注：非常適合 比較適合不適合
 | D≤12 | D>12 | |
| 0 -0.020 | 0 -0.030 | ||
 | d=6 | 8≤d≤10 | 12≤d≤16 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

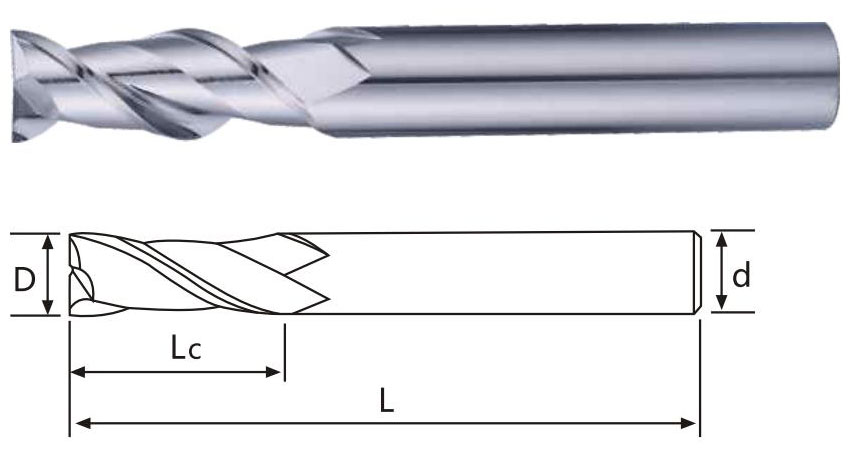

| 商品編號 Product number | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| AL6302E020450 | 0.2 | 0.4 | 4 | 50 | 2 |
| AL6302E030450 | 0.3 | 0.6 | 4 | 50 | 2 |
| AL6302E040450 | 0.4 | 0.8 | 4 | 50 | 2 |
| AL6302E050450 | 0.5 | 1.0 | 4 | 50 | 2 |
| AL6302E060450 | 0.6 | 1.2 | 4 | 50 | 2 |
| AL6302E070450 | 0.7 | 1.4 | 4 | 50 | 2 |
| AL6302E080450 | 0.8 | 1.6 | 4 | 50 | 2 |
| AL6302E090450 | 0.9 | 1.8 | 4 | 50 | 2 |
| AL6302E100450 | 1.0 | 3.0 | 4 | 50 | 2 |
| AL6302E120450 | 1.2 | 3.6 | 4 | 50 | 2 |
| AL6302E150450 | 1.5 | 4.5 | 4 | 50 | 2 |
| AL6302E200450 | 2.0 | 6.0 | 4 | 50 | 2 |
| AL6302E250450 | 2.5 | 7.0 | 4 | 50 | 2 |
| AL6302E300450 | 3.0 | 9.0 | 4 | 50 | 2 |
| AL6302E400450 | 4.0 | 10.0 | 4 | 50 | 2 |
| AL6302E500650 | 5.0 | 12.0 | 6 | 50 | 2 |
| AL6302E600650 | 6.0 | 15.0 | 6 | 50 | 2 |
| AL6302E800860 | 8.0 | 20.0 | 8 | 60 | 2 |
| AL6302E1001075 | 10.0 | 25.0 | 10 | 75 | 2 |
| AL6302E1201275 | 12.0 | 30.0 | 12 | 75 | 2 |

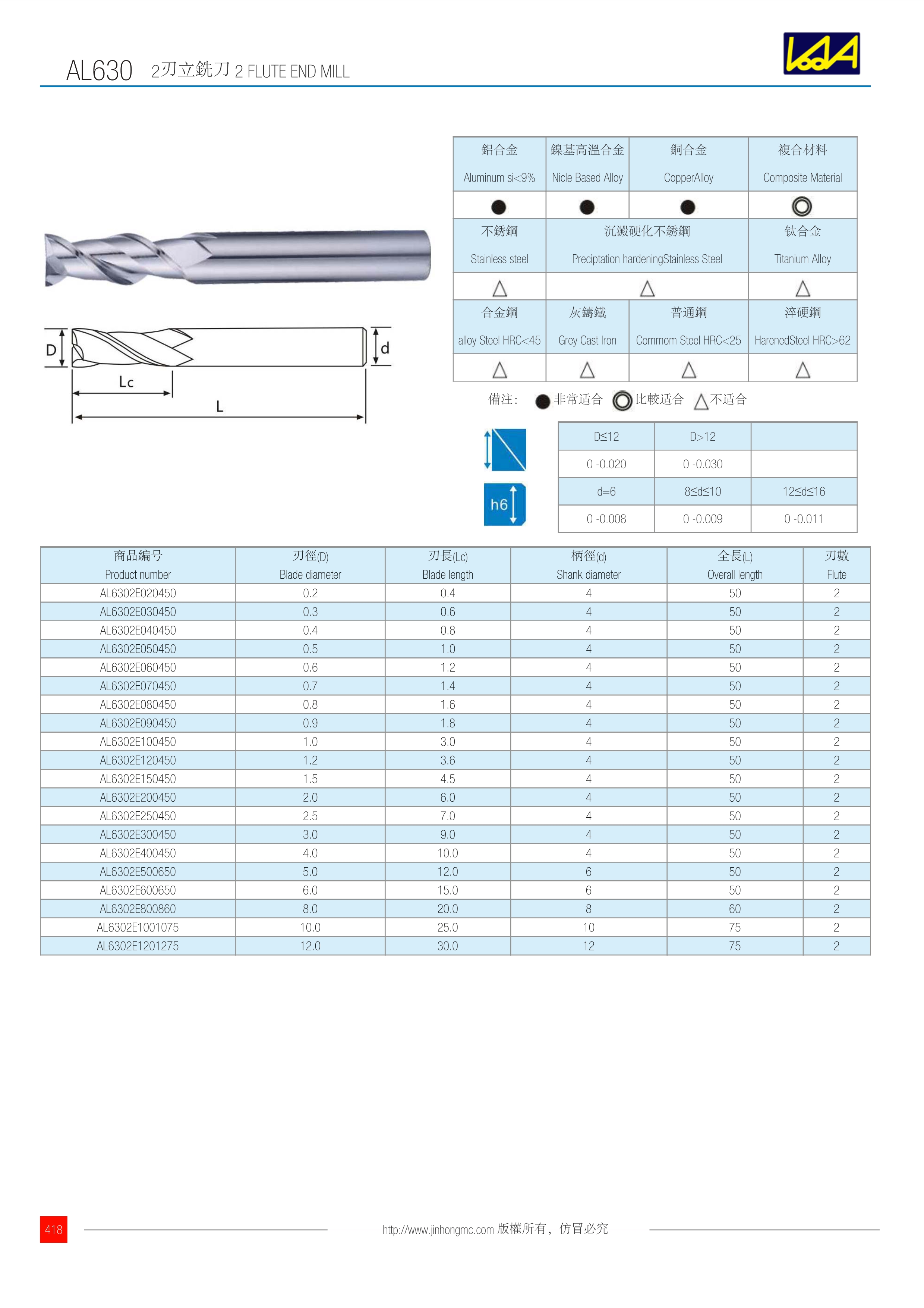

訂購：al630-1 2刃立銑刀
