材質：超微料子超硬合金
涂層表面硬度：HV11000
Material:superfine material of hard alloy
The coating surface hardness:HV11000
 | 3≤R≤6 | ||
| ±0.01 | |||
 | d=6 | 8≤d≤10 | d=12 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

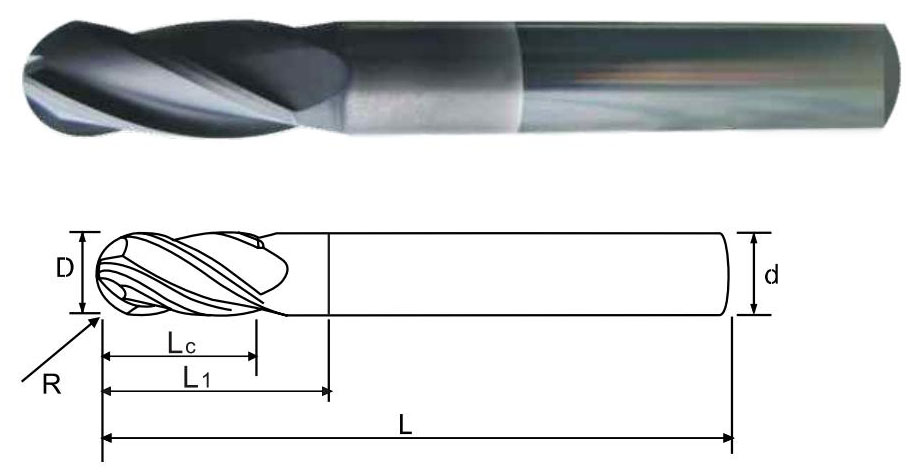

| 商品編號 Product number | 半徑(R) Radius of R | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 有效長(L1) Effective long | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| GP7702BR01545015 | R0.15 | 0.3 | 0.3 | 1.5 | 4 | 50 | 2 |
| GP7702BR0254505 | R0.25 | 0.5 | 1 | 5 | 4 | 50 | 2 |
| GP7702BR0304506 | R0.3 | 0.6 | 1 | 6 | 4 | 50 | 2 |
| GP7702BR0404508 | R0.4 | 0.8 | 1.2 | 8 | 4 | 50 | 2 |
| GP7702BR05045010 | R0.5 | 1.0 | 2 | 10 | 4 | 50 | 2 |
| GP7702BR05045015 | R0.5 | 1.0 | 2 | 15 | 4 | 50 | 2 |
| GP7702BR07545015 | R0.75 | 1.5 | 3 | 15 | 4 | 50 | 2 |
| GP7702BR07545020 | R0.75 | 1.5 | 3 | 20 | 4 | 50 | 2 |
| GP7702BR10045015 | R1.0 | 2.0 | 4 | 15 | 4 | 50 | 2 |
| GP7702BR10045020 | R1.0 | 2.0 | 4 | 20 | 4 | 50 | 2 |
| GP7702BR15036015 | R1.5 | 3.0 | 15 | 15 | 3 | 60 | 2 |

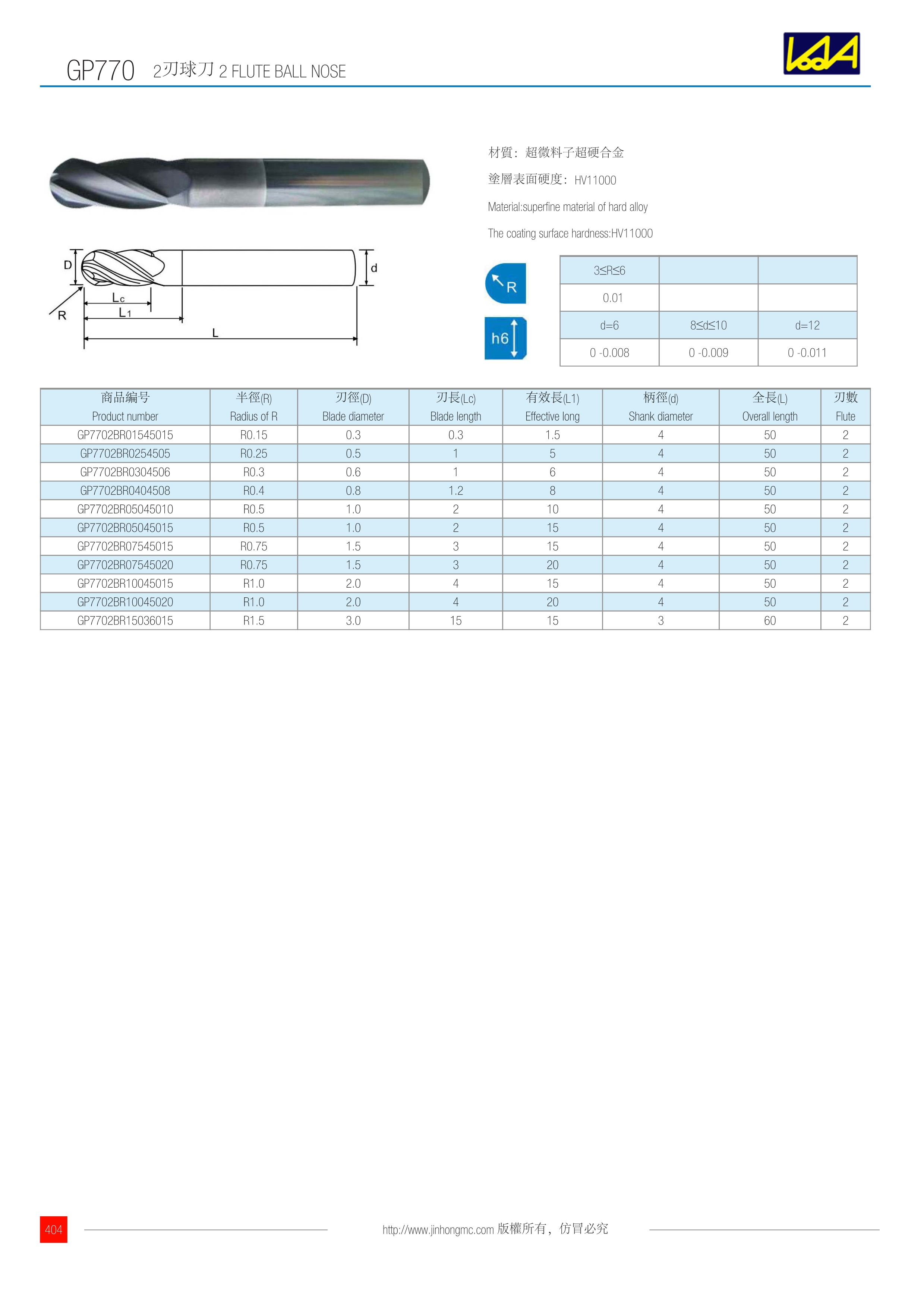

訂購：gp770-4 2刃球刀
