材質：超微料子超硬合金
涂層表面硬度：HV11000
Material:superfine material of hard alloy
The coating surface hardness:HV11000
 | 3≤R≤6 | ||
| ±0.01 | |||
 | d=6 | 8≤d≤10 | d=12 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

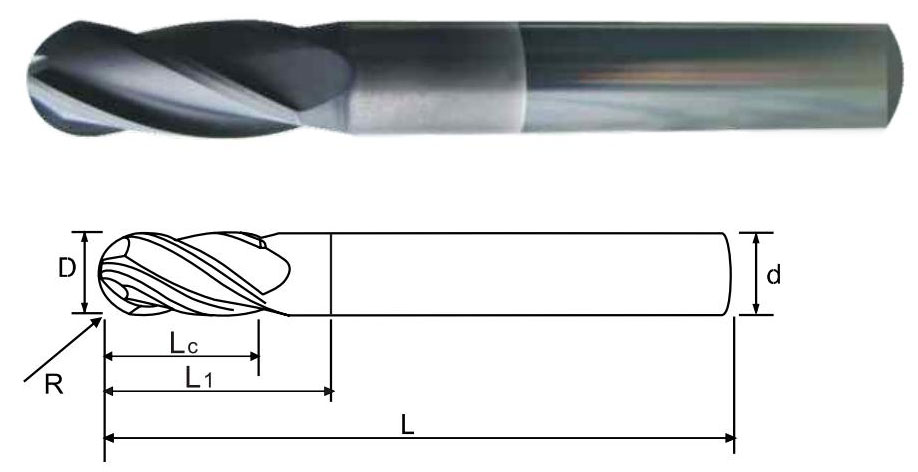

| 商品編號 Product number | 半徑(R) Radius of R | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 有效長(L1) Effective long | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| GP7704BR15036015 | R1.5 | 3.0 | 15 | 15 | 3 | 60 | 4 |
| GP7704BR20047020 | R2.0 | 4.0 | 20 | 20 | 4 | 70 | 4 |
| GP7704BR25056025 | R2.5 | 5.0 | 10 | 25 | 5 | 60 | 4 |
| GP7704BR30067530 | R3.0 | 6.0 | 30 | 30 | 6 | 75 | 4 |
| GP7704BR40087530 | R4.0 | 8.0 | 16 | 30 | 8 | 75 | 4 |
| GP7704BR5001010040 | R5.0 | 10.0 | 25 | 40 | 10 | 100 | 4 |
| GP7704BR6001210040 | R6.0 | 12.0 | 25 | 40 | 12 | 100 | 4 |

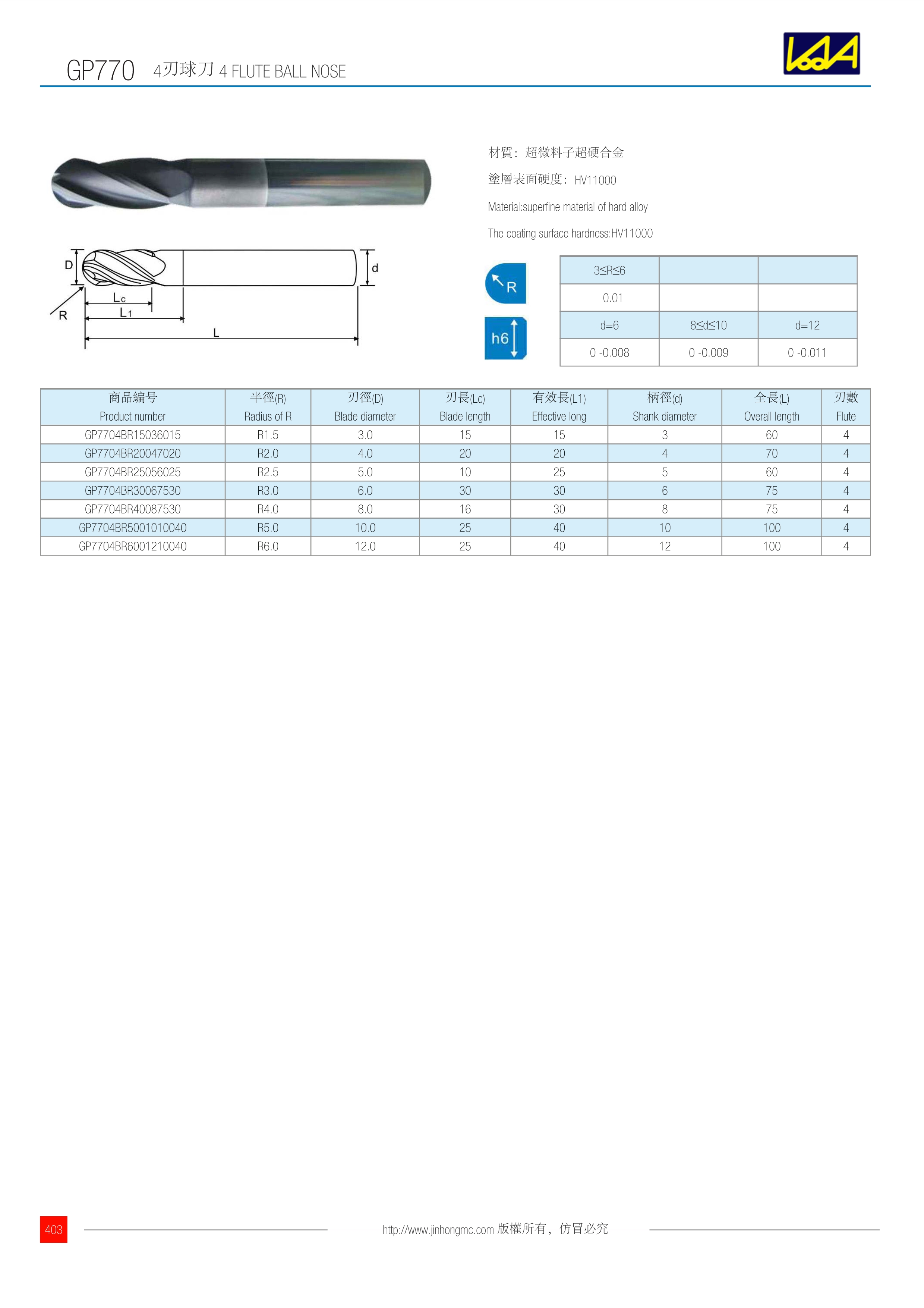

訂購：gp770-5 4刃球刀
