| 鋁合金 Aluminum si<9% | 鎳基高溫合金 Nicle Based Alloy | 銅合金 CopperAlloy | 復合材料 Composite Material |
 | | | |
| 不銹鋼 Stainless steel | 沉淀硬化不銹鋼 Preciptation hardeningStainless Steel | 淬硬鋼 HarenedSteel HRC>62 | 淬硬鋼 HarenedSteel HRC56-62 |
 | | | |
| 合金鋼 alloy Steel HRC<45 | 灰鑄鐵 Grey Cast Iron | 普通鋼 Commom Steel HRC<25 | 鈦合金 Titanium Alloy |
| | | |
備注：非常適合
比較適合不適合
 | R≤6 | R<8 | ||
| ±0.01 | ±0.02 | |||
 | D≤12 | D>12 | ||
| 0 -0.020 | 0 -0.030 | |||
 | 4≤d≤6 | 8≤d≤10 | 12≤d≤16 | 16≤d≤25 |
| 0 -0.006 | 0 -0.009 | 0 -0.011 | 0 -0.013 |

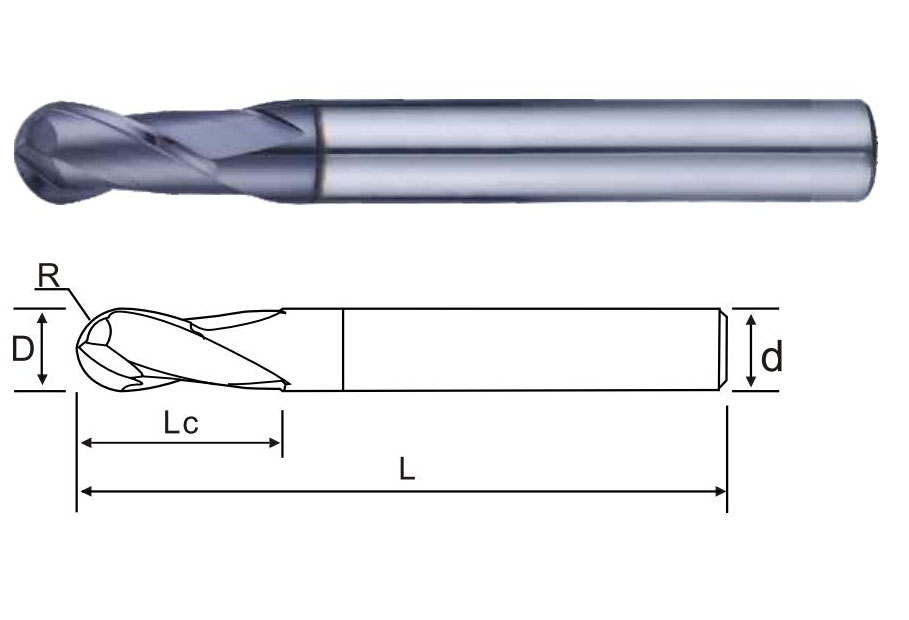

| 商品編號 Product number | 半徑(R) Radius of R | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| MF5002BLR200475 | 2.0 | 4.0 | 8 | 4 | 75 | 2 |
| MF5002BLR200675 | 2.0 | 4.0 | 8 | 6 | 75 | 2 |
| MF5002BLR250675 | 2.5 | 5.0 | 10 | 6 | 75 | 2 |
| MF5002BLR300675 | 3.0 | 6.0 | 12 | 6 | 75 | 2 |
| MF5002BLR400875 | 4.0 | 8.0 | 14 | 8 | 75 | 2 |
| MF5002BLR4008100 | 4.0 | 8.0 | 14 | 8 | 100 | 2 |
| MF5002BLR50010100 | 5.0 | 10 | 18 | 10 | 100 | 2 |
| MF5002BLR60012100 | 6.0 | 12 | 22 | 12 | 100 | 2 |
| MF5002BLR80016150 | 8.0 | 16 | 32 | 16 | 150 | 2 |
| MF5002BLR10020150 | 10.0 | 20 | 40 | 20 | 150 | 2 |
| MF5002BLR12525150 | 12.50 | 25 | 50 | 25 | 150 | 2 |
訂購：mf500-5 2刃加長球刀
